| Owner | Craig Deafscooter Uyeda | ||||||
|---|---|---|---|---|---|---|---|
| Owner's Other EVs | Wahlinger Urban Express Bladez Transport Electric 2003 Boreem Scooter 601-D 2001 Currie Phat Flyer 2005 CAG Pocketbike Bladez PowerKart 2003 Rad2go E 36 Scooter 2005 Bladez Etek Powered Scooter Wahlinger FX1 Electric Scooter 2006 Schwinn Stealth 1000 Junk Urban Express Schwinn s180 Electric Cycle Company Badsey EMX Racer Original Zappy Scooter Badsey EMX White Racer 2004 Black Boreem HCF 707 Electric Scooter 2003 Numo Crusin LX 2001 Badsey EMX Deafscooter Red Limo Scooter Yellow Boreem Scooter 2001 Curries Flyer #2 F-18 Scooter 3 Phase 2002 EVRider City Shuttle Scooter Front Drive Electric Scooter Deafscooter 2008 EVT Deafscooter Blue LimoScooter 2009 Currie Purple Scooter Deafscooter Yellow Two Seated Electric Scooter Deafscooter Pink Two Seated Electric Scooter Deafscooter Almond Two Seated Electric Scooter Deafscooter Chariot Electric Deafscooter Electric Igorot Scooter Deafscooter Luxury Electric Scooter Deafscooter Three Person LimoScooter Deafscooter iZip 1000 Scooter Blue Badsey EMX Scooter Rad2go Scooter Two Seats Deafscooter Low Profile Two Seat Electric Scooter Deafscooter High Ground Clearance E-Scooter Deafscooter Two Seated E-Handicapped Scooter Deafscooter's Electric SideCar Scooter 2003 Numo Crusin LX #2 (2016) | ||||||
| Location | Reseda, California United States map | ||||||

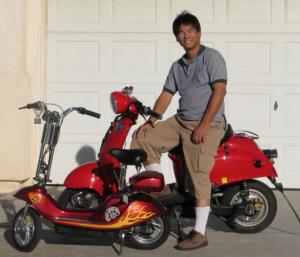

| Vehicle | 2004 EVT Special Edition Asian Version Personal Transport Electric Scooter | ||||||
| Motor | Permanent Magnet DC Special Custom Rewind Hub Motor 3500 watts | ||||||
| Drivetrain | 3500 watts Hub Motor | ||||||
| Controller | Special 48 Volts @ 275 Amps Speed Controller | ||||||
| Batteries | 4, 12.00 Volt, Lead-Acid, Gel Special Silicon ( factory ) Replaced Doped By Deaf Doped Battery make Triples Longer Range | ||||||
| System Voltage | 48 Volts | ||||||
| Charger | Factory Charger is 220v input => 48v output @ 20 A ASIAN Country use 220-240 Volts Input Charger Station ==> Deafscooter use Off board Charger station by Lester golf Charger station is 48 volts at 25 amps from 120 volts | ||||||
| DC/DC Converter | N/A | ||||||
| Instrumentation | Speedometer 0 ~ 60 MPH ( USA issue limited 40 mph ) Real MPH / MILES ( Do not KPH / Kilometer ) Battery level by 4 leds ( 1 ,2 ,3 ,4 Level leds ) Over heated on Hub motor / Speed Controller Signal light Left/Right and Head light LO/HI | ||||||
| Top Speed | 58 MPH (93 KPH) Special Edition EVT Scooter has 3500 watts and High RPM is 1,575 RPM on HUB Wheel | ||||||
| Acceleration | 0-40 mph 8 seconds on flat ground | ||||||
| Range | 60 Miles (96 Kilometers) Note: Doped battery can handle 65 miles Standard SLA battery can handle 25 miles | ||||||
| EV Miles |
| ||||||
| Seating Capacity | Two Adults Person in California === 3 or 4 Person in Indonesia ( one adult and three kids ) ( two adults and one kids ) | ||||||
| Curb Weight | 300 Pounds (136 Kilograms) | ||||||
| Tires | 10 x 3.00 Kenda Tire | ||||||
| Additional Features | Special Edition Version EVT-168 Electric Scooter For ASIAN Country use only ---------------------------------------------------------- Every Day, Heavy Use Riding on Street ~45 mph road Sometime on highway Maxuim is 55 mph about 5 miles Due, Gasoline Rosed to US$ 4.00 per Gallon in Calif Inspection On march 7, 2008 on Red Asian Scooter 5579 Miles old The Hubmotor Run Good conds (Inspected on Brushes) The Four DopedBatteries Packs show 13.5 Volts each The Tire Tread Remain 47% rubber on Front and Rear ------------------------------------------------------------ Updated August 2008 Removed 3500 watts Hub motor and 275 amps speed controller send to asian country for research & inspection on electic motor I Replacment 1500 Watts and 48 volts @ 120 Amps Controller then Deafscooter decide sell the EVT SE Scooter via eBay.. | ||||||
The EVT SE Scooter Sold to new local owner on Oct 14 2008 Sold to customer and Update Scooter's Specific 1500 watts Hub Motor ( 48 volts ) 120 Amps Speed Controller Four 12Volts @ 38 AH Gel Batteries Top Speed is 32 Mph @ 160 pound rider Tranfer to new owner and it have 5790 Miles on scooter I removed my Asian's Licensce Plate off from scooter... | |||||||
2004 EVT 168 Special Edition Version
“ASIAN's EVT S.E. 60 MPH”
Last Updated 10-17-2008
