LocationReseda, California United States map

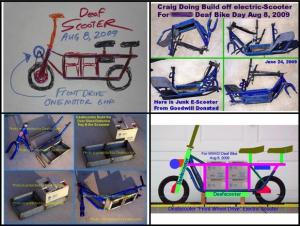

Vehicle2009 Two Seated Front Drive Electric Scooter
Motor Custom ODD/ EVEN Brushed Permanent Magnet DC
Low and High Current
DrivetrainChain
ControllerCurtis 48v 400A
Modified for ODD / EVEN Power switch
Batteries4, 12.80 Volt, Lead-Acid, AGM
System Voltage48 Volts
Charger Off Board Charger Station
InstrumentationGPS
Top Speed42 MPH (67 KPH)
Complete 30 miles on Deaf Bike Day
Range40 Miles (64 Kilometers)
Speed Range 8~24 Mph during Bike day
EV Miles
Current:235 Miles (378 Kilometers)
Seating Capacity2 adults ( each seat 160 Pound )
TiresScooter Tires with Nitrogen fillled
Conversion Time2 weeks
Conversion CostN/A
Additional FeaturesNice Odd / Even Timing Brushed Motor

CDeafscooter Modified Front Drive motor , Scooter work

Complete 30 Miles w Two Person
