OwnerMark Allen
Owner's Other EVsNO FEAR ELECTRIC BIKE
DYNO Electric Bicycle
2000 HRV Honda Hybrid
2009 750W Dragon Fly BIKE Conversion
2009 1000w Cyclops
1967 Volkswagen Beetle
Electric Mongoose
2011 Craine Folding E/Bike
2011 Crain Electric BMX project
2011 FLY-600
ELECTRIC BLACK CHOPPER
ELECTRIC TRIKE
2013 Fusion Mountain Bike
LocationGoldcoast, Queensland Australia map
Web/EmailWebPage email image

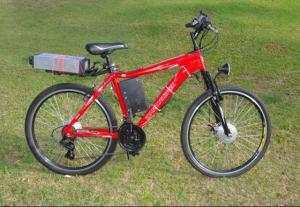

Vehicle2012 Diamond back Apex.
Mountain Bike.
I thought I might try a lite Dual Drive and it was very successful it pulls well up hills and on the flat it dose about 30km/h
Its nice and lite at about 23kg , I tried a Dual Drive MagicPie before but found it a bit to heavy at over 33kgs and I had to run Dual 48v LiIon batteries as well to supply enough amps
This Dual Drive is a good compromise and I am very happy with the results

MotorGolden Motors 2 x 350w BLDC Hub motors. Brushless DC
DrivetrainDual Drive 350w BLDC Hub motors.
48v 12amp Golden Motor LiIon Battery.
2 x Golden Motor Cruize Controllers.
ControllerGolden Motors Cruis Controller
BatteriesGreen Power GoldenMotor 48v 12amp , 48.00 Volt, Lithium-Ion
System Voltage48 Volts
ChargerGolden Motors 48v 4 amp
Smart LiIon Charger
HeaterSun
InstrumentationCycle Computer / Speedo
Top Speed22 MPH (35 KPH)
AccelerationGood
Range22 Miles (35 Kilometers)
Watt Hours/Mile20 Wh/Mile
EV Miles
Current:35 Miles (56 Kilometers)
Seating Capacity1 adult
Curb Weight52 Pounds (23 Kilograms)
Tires26'' Low friction tiers
Conversion Time4h
Conversion Cost$1000
Additional FeaturesSpeacial Features:
Cruise Speed Control Just like a Car set the speed that suits you. Programmable via PC to setup motor control parameters. Motor hall sensor failure redundancy (Automatically switch to sensorless control) Anti-theft alarm and wheel-locking by detection of vibration.
True regenerative braking (only effective when you squeeze the hand brake) Other failures redundancy (Work with failed throttle and power breaker). Work with multiple voltages: 24V, 36V and 48V with the same controller. Report failure components by beeps
Motor phase self detection and calibration Support Forward and Reverse Control.
Excessive Current Protection, Low Voltage Protection, High Reliability.

Bike Specs
Diamond back Apex.
Alloy Frame.
18 speed Shimano Gears.
Front Suspension Falks.
26'' Double wall rims.
26'' Low friction tiers
Front Disk Brake.
Rear Clamp brakes.
Dual Drive 350w BLDC Hub motors.
48v 12amp Golden Motor LiIon Battery.
2 x Golden Motor Cruize Controllers.
Front and Rear LED lights.
Cycle Computer / Speedo

Its nice and lite at about 23kg , I tried a Dual Drive MagicPie before but found it a bit to heavy at over 33kgs and I had to run Dual 48v LiIon batteries as well to supply enough amps
This Dual Drive is a good compromise and I am very happy with the results
