E FLY -600E FLY -600E FLY -600E FLY -600E FLY -600E FLY -600
OwnerMark Allen
Owner's Other EVsNO FEAR ELECTRIC BIKE
DYNO Electric Bicycle
2000 HRV Honda Hybrid
2009 750W Dragon Fly BIKE Conversion
2009 1000w Cyclops
1967 Volkswagen Beetle
Electric Mongoose
2011 Craine Folding E/Bike
2011 Crain Electric BMX project
ELECTRIC BLACK CHOPPER
ELECTRIC TRIKE
2011 Diamond Back Apex.
2013 Fusion Mountain Bike
LocationGoldcoast, Queensland Australia map
Web/EmailWebPage email image

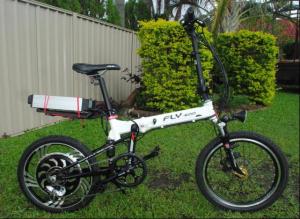

Vehicle2011 GOLDEN MOTOR E CHOPPER FLY -600
FLY -600 - CHOPPER E FOLDING BIKE PROJECT
MotorGolden Motors MagicPie Brushless DC
20" cast Rear Wheel MagicPie (Internal
Controller)
Drivetrain20" cast Rear Wheel MagicPie (Internal
Controller)and Peddle
ControllerGolden Motors Cruzs Controler
Special Features:

Cruise Speed Control Just like a car
Programmable via PC to setup motor control
parameters
Motor hall sensor failure redundency
(Automatically switch to sensorless control)
Anti-theft alarm and wheel-locking by
detection of vibration
True regenerative braking (only effective when
you squeeze the hand brake)
Other failures redundency (Work with failed
throttle and power breaker)
Work with multiple voltages: 24V, 36V and 48V
with the same controller
Report failure components by beeps
Motor phase self detection and calibration
Support Forward and Reverse Control
Excessive Current Protection
Low Voltage Protection
High Reliability

Batteries1 Green Power Golden Motor 48v 12amp, 48.00 Volt, Lithium-Ion
Lithium Iron Battery Pack with BMS/Charger and
Optional Sliding Rack

Aluminium Casing with Switch/Key -- FREE!
BMS and 110V-240Vac 2A Universal Charger
Included (optional 4A)
Weight: below 5.5Kgs
Capacities: 24V/16AH, 36V/12AH, 36V/16AH, or
48V/12AH
Max Discharge Current: 35A(12AH)/60A(16AH)
Max Continuous Discharge Current:
20A(12AH)/30A(16AH)
Charging Cycles: >800 times
Ranges(full electric mode): 38Km(36V12AH) or
50Km(36V16AH, 48V12AH)
Packing Box Dimensions: 24cm X 24cm X 39cm

System Voltage48 Volts
ChargerGolden Motors BMS/Charger 48v
BMS/Charger 48v and Optional Sliding Rack
BMS and 110V-240Vac 2A Universal Charger
Included (optional 4A)
Weight: below 5.5K
HeaterSUN
InstrumentationCycle computer with Speed , Temp , Trip, etc
Top Speed22 MPH (35 KPH)
AccelerationVERY GOOD
Range22 Miles (35 Kilometers)
Good range
Watt Hours/Mile20 Wh/Mile
1000w at the start
500w High speed
Cruize 250w
EV Miles
Current:24 Miles (38 Kilometers)

    As of 9/30/2019
Seating Capacity1 adult
Curb Weight45 Pounds (20 Kilograms)
22kg a little heavy
Tires20" x 195 Dyno
Conversion Time1.5 hours
Conversion CostAround $1000
Additional FeaturesSpecial Features:

Cruise Speed Control Just like a car.
Programmable via PC to setup motor control parameters
Motor hall sensor failure redundency (Automatically switch to
sensorless control).
Anti-theft alarm and wheel-locking by detection of vibration.
True regenerative braking (only effective when you squeeze the
hand brake).
Other failures redundency (Work with failed throttle and power
breaker).
Work with multiple voltages: 24V, 36V and 48V with the same
controller.
Report failure components by beeps.
Motor phase self detection and calibration.
Support Forward and Reverse Control.
Excessive Current Protection.
Low Voltage Protection .
High Reliability
Mud gards keep you dryer.
Cycle computer with Speed , Temp , Trip, etc.
Cree LED front and tail lights.

FLY -600 - CHOPPER
FEATURES Pro's
Internal Controller : All the functions like the electric horn ,
led lights are easy to wire up
The bike is fun to ride with its big wide seat its very
comfortable and it folds up to fit in the boot
The Led Lights work well and look good.
Front and rear disk brakes you need them with this beast.
Front and rear suspenstion works very well.
Double wall rim's front and sollid mag rear are great.
Alloy frame makes it light.
6 speed Shimano Gears work well not that you need to peddle much
LOL .
Regen braking as well works fantastic.
Cruize Control you can set the throttle aat any speed you like .
Cycle computer with Speed , Temp , Trip, etc. is a good edition.
Electric Horn and Bell to get the pedestrians out of the way.
No Mud gards yet but there comming.

Con's
Could do with folding peddles
Could have mud guards to keep you dryer
But apart from no folding peddles & mud guards this is a great
machine.
