TRIKE BIKETRIKE BIKETRIKE BIKETRIKE BIKETRIKE BIKE
OwnerMark Allen
Owner's Other EVsNO FEAR ELECTRIC BIKE
DYNO Electric Bicycle
2000 HRV Honda Hybrid
2009 750W Dragon Fly BIKE Conversion
2009 1000w Cyclops
1967 Volkswagen Beetle
Electric Mongoose
2011 Craine Folding E/Bike
2011 Crain Electric BMX project
2011 FLY-600
ELECTRIC BLACK CHOPPER
2011 Diamond Back Apex.
2013 Fusion Mountain Bike
LocationGoldcoast, Queensland Australia map
Web/EmailWebPage email image

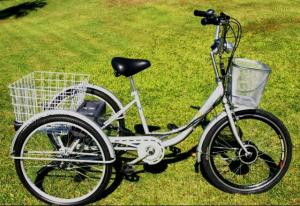

Vehicle2011 ELECTRIC TRICYCLE
BIKE Specifications:
Strong Steel Frame.
24" Spoked Front Wheel with Double Wall Rim
with new tyre.
Heavy Duty Frame.
24" Rear Wheels.
Rear Tyres Heavy Duty.
SHIMANO 6 Speed Chain Gears.
Strong Alloy Quality Crank.
36v 12amp Powerful Battery Pack with Special
Charger for Long Life.
Very Large Comfortable Seat.
Front Clamp and Drum Rear Brakes.
Wide Handle Bars.
Front and Rear LED Lights.
Cycle Computer Speedo.

MotorGolden Motors Mini Motor Brushless DC
Mini front BLDC hub Motor 350w
DrivetrainFront electric 350w hub motor
ControllerGolden Motors CRUIZE CONTROLER
Cruise Speed Control Just like a Car set the
speed that suits you. Programmable via PC to
setup motor control parameters. Motor hall
sensor failure redundancy (Automatically
switch to sensorless control) Anti-theft alarm
and wheel-locking by detection of vibration.
True regenerative braking (only effective when
you squeeze the hand brake) Other failures
redundancy (Work with failed throttle and
power breaker). Work with multiple voltages:
24V, 36V and 48V with the same controller.
Report failure components by beeps
Motor phase self detection and calibration
Support Forward and Reverse Control.
Excessive Current Protection, Low Voltage
Protection, High Reliability.

Batteries3 Green Power 36v 20amp, 36.00 Volt, Lead-Acid, Gel
Green Power 36v 20amp plastic battery box
ChargerGolden Motors 36v /Smart/Charger 4amp
HeaterSun
InstrumentationCycle Computer / Speedo
Top Speed20 MPH (32 KPH)
Good for a trike
AccelerationGood
Range25 Miles (40 Kilometers)
Watt Hours/Mile10 Wh/Mile
EV Miles
Start:1 Miles (1 Kilometers)
Current:121 Miles (194 Kilometers)
Total:120 Miles (193 Kilometers)

    As of 9/30/2019
Seating Capacity1 adult
Curb Weight80 Pounds (36 Kilograms)
Tires24" x 1.5
Conversion Time10h
Conversion Cost$700
Additional FeaturesSpeacial Features:
Cruise Speed Control Just like a Car set the speed that suits you.
Programmable via PC to setup motor control parameters. Motor hall
sensor failure redundancy (Automatically switch to sensorless
control) Anti-theft alarm and wheel-locking by detection of
vibration.
True regenerative braking (only effective when you squeeze the
hand brake) Other failures redundancy (Work with failed throttle
and power breaker). Work with multiple voltages: 24V, 36V and 48V
with the same controller. Report failure components by beeps
Motor phase self detection and calibration Support Forward and
Reverse Control.
Excessive Current Protection, Low Voltage Protection, High
Reliability.

BIKE Specifications:
Strong Steel Frame.
24" Spoked Front Wheel with Double Wall Rim with new tyre.
Heavy Duty Frame.
24" Rear Wheels.
Rear Tyres Heavy Duty.
SHIMANO 6 Speed Chain Gears.
Strong Alloy Quality Crank.
36v 12amp Powerful Battery Pack with Special Charger for Long
Life.
Very Large Comfortable Seat.
Front Clamp and Drum Rear Brakes.
Wide Handle Bars.
Front and Rear LED Lights.
Computer Speedo.

This NEW Electric TRIKE the only one in Australia it's powerful up to
25kmh, and has a range of 35km up to 45km with peddle assist. Could
be ridden by Adult, Older Person or Child. You could pay over $2000
for an E-Bike with these features
