Building the ChopperBuilding the ChopperBuilding the ChopperBuilding the ChopperFinnished Chopper drive lineFinnished ChopperFinnished ChopperFinnished ChopperFinnished Chopper
OwnerMark Allen
Owner's Other EVsNO FEAR ELECTRIC BIKE
DYNO Electric Bicycle
2000 HRV Honda Hybrid
2009 750W Dragon Fly BIKE Conversion
2009 1000w Cyclops
1967 Volkswagen Beetle
Electric Mongoose
2011 Craine Folding E/Bike
2011 Crain Electric BMX project
2011 FLY-600
ELECTRIC TRIKE
2011 Diamond Back Apex.
2013 Fusion Mountain Bike
LocationGoldcoast, Queensland Australia map
Web/EmailWebPage email image

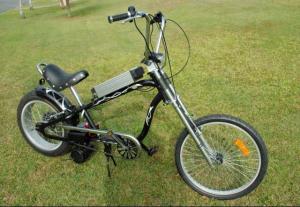

Vehicle2011 CHOPPER
ELECTRIC CHOPPER BIKE CONVERSION
FLIGT 20 " 4" FAT REAR TYRE 24" FRONT TYRE 48v ELECTRIC BIKE

MotorGolden Motors BLT 800w Brushless DC
Drivetrain20" Rear 4" FAT Wheel with a Powerful 48v 800w BLDC CHAIN DRIVE Motor

ControllerGeneral Motors CRUIZE CONTROLER
BatteriesGolden Motor 48v 12amp, 48.00 Volt, Lithium-Ion
System Voltage48 Volts
ChargerGolden Motors 48v BMS/Smart/Charger 4amp
48v BMS/Smart/Charger 4amp keeps the batteries in top condition
HeaterSun
InstrumentationCycle Computer
Top Speed25 MPH (40 KPH)
Powerfull upto 40km/h , good hill climer
AccelerationFast
Range25 Miles (40 Kilometers)
Good range
Watt Hours/Mile10 Wh/Mile
Powerfull
EV Miles
Start:1 Miles (1 Kilometers)
Current:10 Miles (16 Kilometers)
Total:9 Miles (14 Kilometers)

    As of 7/12/2011
Seating Capacity1 adult
Curb Weight70 Pounds (31 Kilograms)
A little heavy
Tires20 "x 4" FAT REAR TYRE 24"x 1.5 FRONT
Conversion Time10h
Conversion Cost$1000
Additional FeaturesSpecial Features:

Cruise Speed Control Just like a Car set any speed you like , Just like a car.
Programmable via PC to setup motor control parameters
Motor hall sensor failure redundency (Automatically switch to sensorless control)
Anti-theft alarm and wheel-locking by detection of vibration
True regenerative braking (only effective when you squeeze the hand brake)
Other failures redundency (Work with failed throttle and power breaker)
Work with multiple voltages: 24V, 36V and 48V with the same controller
Report failure components by beeps
Motor phase self detection and calibration
Support Forward and Reverse Control
Excessive Current Protection
Low Voltage Protection
High Reliability
48v Powerful 12amp LiIon Battery Pack with LiIon Charger and Built in BMS for long life.
Front and Rear LED Lights
Cycle Computer Speedo

BIKE Specifications.
Chopper style Strong Steel Frame.
Chopper style seat.
24: Dubble Spoked Front Wheel with quality tyre.
20" Rear 4" FAT Wheel Rear Tyre Heavy Duty with puncher resistant tube together worth $65.
Strong Alloy Quolity Crank.
Front and Rear Clamp Brakes.
Chopper style Handle Bars.
Rear mud guard.

Great chopper to ride
This unique NEAR NEW CHOPPER STYLE Electric Bike the only one in Australia its powerfull upto 40km/h , good hill climer and has a range of 35km upto 45km with peddle assist .Could be riden by Adult or Child you could pay over $2000 for a E Bike of this power and features !
