MAGIC PIE 3 KITMotorBatteryRear DiskFront DiskRear SuspensionLED LightsIndex GearsBike L H S
OwnerMark Allen
Owner's Other EVsNO FEAR ELECTRIC BIKE
DYNO Electric Bicycle
2000 HRV Honda Hybrid
2009 750W Dragon Fly BIKE Conversion
2009 1000w Cyclops
1967 Volkswagen Beetle
Electric Mongoose
2011 Craine Folding E/Bike
2011 Crain Electric BMX project
2011 FLY-600
ELECTRIC BLACK CHOPPER
ELECTRIC TRIKE
2011 Diamond Back Apex.
LocationGoldcoast, Queensland Australia map
Web/EmailWebPage email image

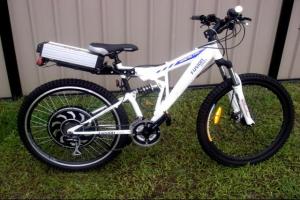

Vehicle2013 Fusion Mountain Bike
Front and rear Disk brakes.
Front and rear Suspension.
Front and rear LED Lights.
Alloy frame.
MotorGolden Motors Golden Motors MAGIC PIE 3 Brushless DC Brushless DC
MagicPie 3 1000w rear hub Motor with BUILT-IN Cruise Controller
DrivetrainGolden Motors MAGIC PIE 3 48v 1000w rear hub Brushless DC motor.
ControllerGolden Motors Cruise Controller 50amp
Golden Motors Golden Motor Cruise Controller
Cruise Speed Control
Motor hall sensor failure redundency (Automatically switch to sensorless control)
Anti-theft alarm and wheel-locking by detection of vibration
True regenerative braking (only effective when you squeeze the hand brake)
Other failures redundency (Work with failed throttle and power breaker)
You can force it to work with lower voltages (e.g 48V to 36V, 36V to 24V)
Report failure components by beeps
Motor phase self detection and calibration
Support Forward and Reverse Control
Support PAS (pedelec for EU regulations)
Excessive Current Protection
Low Voltage Protection (no limit to upside voltage)
High Reliability
Available for 24V,36V and 48V brushless motors.
Batteries1 48.Volt, 13amp Lithium-Polymer, 1.00 Volt, Lithium-Polymer
1 Golden Motor, 48.00 Volt, Lithium-Ion
Lithium Iron Battery Pack with BMS/Charger and Optional Sliding Rack

Aluminium Casing with Switch/Key -- FREE!
BMS and 110V-240Vac 2A Universal Charger Included (optional 4A)
Weight: below 5.5Kgs
Capacities: 24V/16AH, 36V/12AH, 36V/16AH, or 48V/12AH
Max Discharge Current: 35A(12AH)/60A(16AH)
Max Continuous Discharge Current: 20A(12AH)/30A(16AH)
Charging Cycles: >800 times
Ranges(full electric mode): 38Km(36V12AH) or 50Km(36V16AH, 48V12AH
System Voltage48 Volts
ChargerGolden Motors 48v BMS/Smart/Charger 4amp
Golden Motor
BMS/Smart/Charger 4amp
Smart charger
Super Power 3 stage semi-intelligent
HeaterSUN
InstrumentationCycle Computer , Speedo
Top Speed30 MPH (48 KPH)
Very Good hil climing abilty.
AccelerationVery Good.
Range30 Miles (48 Kilometers)
With pedal assist.
Watt Hours/Mile400 Wh/Mile
EV Miles
Current:321 Miles (516 Kilometers)
Seating Capacity1 adult
Curb Weight55 Pounds (24 Kilograms)
Tires26'x 2.1'
Conversion Time2hrs
Conversion Cost1000 for Coversion kit $300 for the bike
Additional FeaturesIt has a cruise control as well,you can set any speed and regenerative braking.
Front and Rear Disk brakes with regenerative braking works like ABS.
Cree Led head front light and Tail lights with different modes they are nice and bright.
48v battery pack for better performance.
Front and Rear suspension 21 speed peddle gears.
Front and Rear Carry racks.
Goes really well for a $1000 kit.
Great Power to handle those steep hills yet still whisper quiet, 48v battery pack for extra per charge distance, easy to install only 60 minutes,
Smooth Efficient and up-rated 1000watt motor,
Top speed of over 45kmph and even faster with pedal assist.
Everything you need to completely install the kit (includes batteries and charger).
Best of quality: Money Back Guarantee and Warranty,
Efficient use of power and environmentally friendly,
Can be ridden like a an electric bike without pedaling, just pedaling or a combination.
Reduces road congestion and no need to pay for parking meters.
Fits to your bike so you can choose your bicycle style,
Efficient packaging which means you save on postage,
Comes in many sizes (20",24",26",28"/700c),
Low cost which means you save dollars!
