Chris' 1991 City EL

Owner	Chris
Owner's Other EVs	Peugeot Partner Electric 1996 Twike TW084 1999 Semca Fun Elec 1995 Ligier Optima 1998 Renault Clio electrique 1974 Kynast EMO 374 1994 Puli 2E 1996 Renault Clio Electrique 2007 EVT 168 Retroscooter 2004 Th!nk City PIV4 2008 Think City
Location	Huertgenwald, North Rhine-Westphalia Germany ^map
Web	WebPage

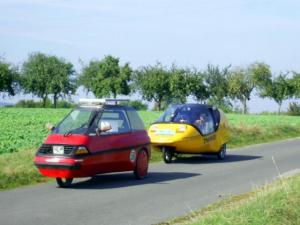

Vehicle	1991 CityCom Basic made in Denmark, many Updates, Solar Panel on the roof.
Motor	Thrige-Titan TTL 140B Compound Wound DC
Controller	Curtis 1204x Refurbished on 48 Volts
Batteries	6 Saft STM5-100, 6.00 Volt, Nickel-Cadmium, Flooded
System Voltage	36 Volts
Charger	Efore switching power supply 30 Amps + 15 Amps small charger
Heater	electric
Top Speed	35 MPH (56 KPH)
Range	45 Miles (72 Kilometers)
Watt Hours/Mile	with new drivebelt approximately 1 Ah per 1 KM
Seating Capacity	1 adult
Curb Weight	0 400 kg max
Tires	80/70 -16 Continental
Additional Features	As all lithium Batteries the Thunderskys must be managed to reach maximum lifetime performance. I use a fine management system from www.gk-anlagentechnik.de as well for my NiCads. Their VPMS (Vehicle-Power-Management-System) allows a lot of different parameters and measurements, as for example: drawn amperes, temperature, charged/discharged amperehours, single cell voltage, voltage.
