OwnerGrant Higginson
Owner's Other EVs2010 Grant Higginson
TC100 Crystalyte 72V 80A 5700 watts
LocationAdelaide, South Australia Australia map
Web/Emailhttp:www.evwarehouse.com.au email image

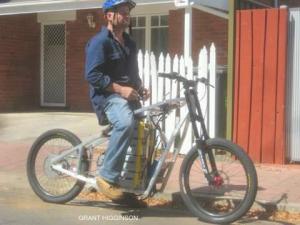

Vehicle2010 Custom
Frame is aircraft grade aluminum 3.3mm Tube,Super strong and very
light.
MotorPerm Motor Perm132 Permanent Magnet DC
DrivetrainDuplex Roller Chain #35 Heavy Duty Chain,Custom rear hub, Hydraulic
Disc Brakes and steel cap boots
ControllerAlltrax AXE 7234
Batteries4 Optima D51, 12.00 Volt, Lead-Acid, AGM
System Voltage48 Volts
HeaterSunshine
Instrumentationamp and volt meters
Top Speed50 MPH (80 KPH)
Accelerationvery happy fast. So much fun to ride it's exciting heart pounding fun.
Range20 Miles (32 Kilometers)
Seating Capacity1 adult
Curb Weight0
Frame,Wheels,forks,22kg
Motor 11kg
Batteries 44 kg
Controller 2-3 kg
Conversion Time6 weeks
Conversion Cost$4500 AU
Additional FeaturesThe Ballistic Electric Bike Grant rubertron@hotmail.com


WebPage

WebPage
New bike finished 34hp at 55kg Top Speed of around
110kph so far
