| Owner | Chris (former owner, EV has been sold) | ||||||
|---|---|---|---|---|---|---|---|
| Owner's Other EVs | Peugeot Partner Electric 1999 Semca Fun Elec 1995 Ligier Optima 1998 Renault Clio electrique 1991 City EL 1974 Kynast EMO 374 1994 Puli 2E 1996 Renault Clio Electrique 2007 EVT 168 Retroscooter 2004 Th!nk City PIV4 2008 Think City | ||||||
| Location | Huertgenwald, North Rhine-Westphalia Germany map | ||||||
| Web | WebPage | ||||||

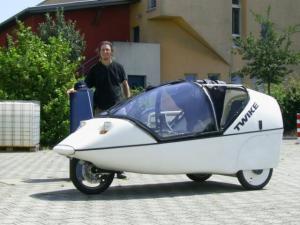

| Vehicle | 1996 TWIKE TW084 This Twike is one of the very first series in 1996. | ||||||
| Motor | Landert 3kw / 5kw peak 3-Phase AC | ||||||
| Drivetrain | direct drive with differential gear | ||||||
| Controller | Schmidhauser 336 V, 20Amp with recuperation,(programmable) | ||||||
| Batteries | 280, 1.20 Volt, Nickel-Cadmium, Sealed/Dry 3x3,6 Ah I can get about 8,6 Ah out of the three packs. | ||||||
| System Voltage | 336 Volts | ||||||
| Charger | 3 kw, integrated on board | ||||||
| Heater | defroster hairdryer (2x) in glass heated window No idea for a winter heater yet | ||||||
| DC/DC Converter | Brusa 336 to 12 Volt | ||||||
| Instrumentation | digital, speed, proposed reach, drawn current, voltage, battery temperature, capacity in Ah (the last 4 even seperate for all three battery blocks) | ||||||
| Top Speed | 53 MPH (85 KPH) | ||||||
| Acceleration | programmable in two strenghts | ||||||
| Range | 53 Miles (85 Kilometers) | ||||||
| EV Miles |
| ||||||
| Seating Capacity | 2 adults | ||||||
| Curb Weight | 550 Pounds (249 Kilograms) | ||||||
| Tires | Maloya Racer | ||||||
1996 Twike TW084
Last Updated 08-25-2011
