Lawrence Rhodes' Schwinn Stingray

Owner	Lawrence Rhodes
Owner's Other EVs	1997 Ford Aspire EMB Lectra Vego 600 SX 1980 Jet ElectraVan 750 2001 Lepton 1987 Honda VT700 Shadow 2007 I-zip Electric Chopper Chinese Electric Tricycle Pickup 2016 Nissan Leaf 2013 Nissan Leaf
Location	San Francisco, California United States ^map
Email
Vehicle	Schwinn Stingray
Motor	ND hydraulic motor unknown 0.5 kw
Drivetrain	chain 7 to 72 ratio
Controller	Alltrax AXE 300 Amp 24-48 Volt
Batteries	2 Interstate DCS-33H, 12.00 Volt, Lead-Acid, AGM
System Voltage	24 Volts
Charger	Soneil 2416
DC/DC Converter	seperate 12 Volt battery runs contactor
Instrumentation	Bicycle speedometer
Top Speed	19 MPH (30 KPH) on the flat
Acceleration	never
Range	8 Miles (12 Kilometers)
Seating Capacity	1adult
Curb Weight	0 heavy
Tires	stock Schwinn
Conversion Time	2 weeks
Conversion Cost	$1000
Additional Features	I tried to keep this vehicle legal to the California code regarding motorized bicycles. It is not a Moped. This vehicle will not go faster than 20 mph on level ground. It is under 1000 watts (motor) Has bicycle style lights for night use. I had to modify the back hub to hold a disc. The front wheel had to be changed to accept the disc brake. The 72 tooth sprocket is held on to the back wheel by an adapter that allows any sprocket machined properly to freewheel on any standard bicycle hub.
This bike has major cool factor but if I did it again I'd use scooter parts. Much cheaper.

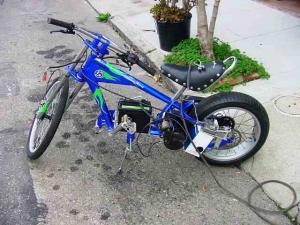

Schwinn Stingray“Electric Chopper”
