OwnerDoctorbass
Owner's Other EVs1996 Trek 970
2008 Mongoose
2008 Supercycle Hooligan
2003 GIANT DH Comp 113km/h speed update 08-2011
2011 KMX Typhoon
2014 / 1991 Sears Craftman 825 Track Drive
LocationQuebec, Quebec Canada map
Web/EmailWebPage email image
Vehicle2005 Motobike for kids

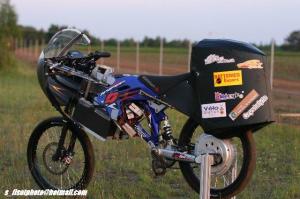

World fastest electric bicycle 2009 94.372kph with front wind of 24km/h

This electric bike is built to beat the world record of the fastest electric bicycle. I started using a kid motobike that I modified the frame to increase stability and added fairing to get more aerodynamic profile
MotorCrystalyte 5302 3-Phase AC
The motor base is a 5302 hub motor that i drilled the side cover to cool it down and that i doubled every phase wires connector to icrease current capability
ControllerCrystalyte 18 fets controller using IR4110 mosfets 15 000Watt
The base is a stock 18 fets controller that i modified the aluminum bar to sing the heat of the fets using pure copper and i also replaced the stock 100V 1000uF capacitor for low ESR 160V 1000uF capacitors and installed larger power input wires.

105V and 172A max
Batteries120 A123 Systems 30s 4p, 99.00 Volt, Lithium-Ion
The battery pack is made using recycled Dewalt battery pack. The BMS is made by Tppacks and can manage 28s. The 2s 4p missing is a booster pack.

The totaol battery power capability is 34000Watts
System Voltage99 Volts
Charger Meanwell RSP 1500
This is a 48V 32A power supply converted into a charger. this power supply have a PFC of 0.99 !!!.
it is adjusted to 34A and 51.8V it draw 17Amps from the 120 Ac outlet
InstrumentationCycle analyst V2.1
Top Speed59 MPH (94 KPH)
The speed was recorded using a GPS on the drag racing lane of Pont Rouge in Canada. We had a front wind of 24km/h so the expected speed no wind should be around 105-110km/h
Acceleration0-70km/h in 5sec
Range7 Miles (11 Kilometers)
at full speed!
Watt Hours/Mile120 Wh/Mile
EV Miles
Current:21 Miles (33 Kilometers)
Seating Capacity1 adult
Curb Weight92 Pounds (41 Kilograms)
Tires120PSI slick 20" tires inflated to 118PSI
Conversion Time8 months
Conversion Cost2300$ + many great sponsors!
Additional FeaturesThis electric bicycle is built to stay the actual world fastest electric bike! I love to test and ameliorate it!.. I had very low time to construct it cause I had to finish it before the 16 and 17 June for a TV episode that was filmed for that electric bike. otherwise I would have take all summer to finish it!

I still have a lot of things to tune and ameliorate on it.
