| Owner | Toby Ricco |
|---|---|
| Owner's Other EVs | Custom Electric kart Custom Electric Scooter Version 1 Indoor Electric Kart (Made for Rick Gaan) Custom Electric Shifter Kart Custom Electric Scooter Version 2 |
| Location | Los Gatos, California United States map |
| | |

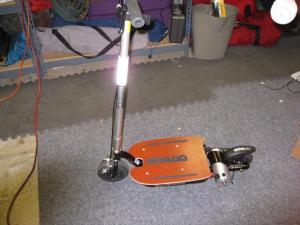

| Vehicle | CGK-HO This is a custom-made, high-performance electric scooter. It was based on a Go-ped iped chassis. Cambrian Go Karts designed and installed a completely new drive train. |
| Motor | Magmotor S28-400 Permanent Magnet DC This is a powerful, neodymium electric motor. It can put out 4.5 hp continuous and up to 10 hp peak. |
| Drivetrain | -Lithium Iron Phosphate A123 cells -Magmotor S28-400 (brushed DC) -Kelly controller |
| Controller | Kelly KDS48200E This is a 48 volt, 200 amp, high-efficiency controller made by Kelly Controllers. |
| Batteries | 36 A123 Systems 2.3ah LFP cells, 3.20 Volt, These are extremely high-quality lithium iron phosphate batteries. They are capable of doing 360 amps in this configuration. They are wired as 3 cells in parallel and 12 of those sets in series. |
| System Voltage | 38 Volts |
| Charger | Lithium-Iron-Phosphate charger. 6 amps, 1hr15min charge time, 43.8 volt cut-off |
| Top Speed | 35 MPH (56 KPH) This scooter is extremely fast for it's size |
| Acceleration | The scooter is capable of wheelie's |
| Range | 7 Miles (11 Kilometers) The range is 7 miles averaging over 18mph. It can go much further if you drive slowly (such as 10-12 mph like a goped in econo mode) |
| Curb Weight | 45 Pounds (20 Kilograms) |
| Tires | Standard hard-rubber Goped tires. |
| Additional Features | The controller is programmed to cut-off at below 30 volts. This is in order to protect the batteries from over discharge. |
| This scooter is for sale. Contact Cambrian Go Karts (info@cambriangokarts.com) for more information. | |
Lithium-Iron-Phosphate High Output Scooter
“CGK-HO”
Last Updated 06-25-2009
