| Owner | charlesg |
|---|---|
| Owner's Other EVs | RazEr REV2 RazEr Scooter LOLrioKart RazErBlades Xtreme XP-700 Melon-Scooter LandBearShark Chibi-Mikuvan RazEr rEVolution Straight RazEr Fanscooter! Chibikart 2 Chibikart Razor Electric Punk |
| Location | Cambridge, Massachusetts United States map |
| Web/Email | WebPage |

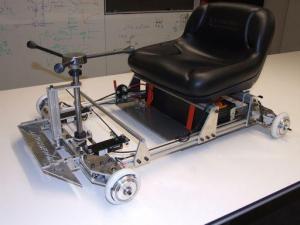

| Vehicle | Chibikart! 80/20 extrusion and waterjet-cut aluminum plate frame |
| Motor | Brushless DC Custom built 200W, 100mm wheel hub motors |
| Drivetrain | 4 wheel direct drive |
| Controller | Four "250W" sensorless electric bicycle controllers from eBay seller bobzhangxu |
| Batteries | 10 A123 Systems 32113, 3.20 Volt, Lithium Iron Phosphate |
| System Voltage | 32 Volts |
| Charger | Hobbyking iCharger 1010B+ |
| Heater | Toasting hub motor windings |
| Top Speed | 26 MPH (41 KPH) |
| Range | 5 Miles ( 8 Kilometers) Large battery combined with relative efficient, current-limited motors |
| Seating Capacity | 1, 2 if you're creative |
| Tires | 100mm 80A skate wheels |
| Conversion Time | 3 weeks |
| Conversion Cost | $400 out-of-pocket, $1600-1750 all-parts minus battery |
| Constructed to test if 100mm dia. hub motors can push a go-kart. The answer is mostly yes. WebPage WebPage WebPage | |
Chibikart!
Last Updated 09-23-2012
