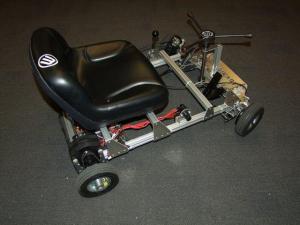

Charles' Chibikart

Owner	charlesg
Owner's Other EVs	RazEr REV2 RazEr Scooter LOLrioKart RazErBlades Xtreme XP-700 Melon-Scooter LandBearShark Chibi-Mikuvan RazEr rEVolution Straight RazEr Fanscooter! Chibikart! Chibikart 2 Razor Electric Punk
Location	Cambridge, Massachusetts United States ^map
Web/Email	WebPage
Vehicle	Chibikart An upgrade of the Chibikart frame to demonstrate a competent R/C based sensorless drive system with 2-speed robotic drivetrain transmissions
Motor	Turnigy NTM 5065-380 Brushless DC
Drivetrain	Rear wheel chain drive, 2 motor
Controller	Turnigy dLux 160A HV Largest of the dLux line, chosen for amperage overhead and to test robustness of the type class.
Batteries	0.00 Volt, Lithium-Polymer 2 leftover 10S 5Ah Turnigy Nanotech packs
System Voltage	37 Volts
Top Speed	35 MPH (56 KPH) 15mph in first gear 35mph in second gear
Acceleration	Something wheelie-limited.
Seating Capacity	1?
Curb Weight	45 Pounds (20 Kilograms)
Tires	6x2 pneumatic caster tires
Additional Features	Dual front disk brakes; cable actuated.
Uses a very high gear ratio with fast sensorless motors to avoid startup "cogging" associated with sensorless R/C type controllers, then a low gear ratio for top speed and powerband. Each motor powers a Vex "Ball Shifter" 2 speed transmission, which powers 1 rear wheel wheel. Shifting is mechanical.

Chibikart“BurnoutChibi”
