| Owner | charlesg |
|---|---|
| Owner's Other EVs | RazEr REV2 RazEr Scooter LOLrioKart RazErBlades Xtreme XP-700 Melon-Scooter LandBearShark Chibi-Mikuvan RazEr rEVolution Straight RazEr Fanscooter! Chibikart! Chibikart Razor Electric Punk |
| Location | Cambridge, Massachusetts United States map |
| Web/Email | WebPage |
| Vehicle | 80/20 T-slot aluminum extrusion framing with waterjet-machined aluminum gusset and mounting plates. |
| Motor | Turnigy SK3 5065 Brushless DC R/C outrunners with skirt bearings were chosen as the motors are being used as brake drums. |
| Drivetrain | 2 wheel RWD |
| Controller | Sensorless brushless controller marketed as "250W" at 24V, though it really puts out ~600W |
| Batteries | 2 A123 Systems 12V7, 12.80 Volt, Lithium Iron Phosphate A123 12V7 lead acid replacement modules |
| System Voltage | 26 Volts |
| Top Speed | 20 MPH (32 KPH) |
| Range | 4 Miles ( 6 Kilometers) |
| Seating Capacity | 1, or up to 5 if arranged carefully |
| Curb Weight | 38 Pounds (17 Kilograms) |
| Tires | 4" Colson Performa solid caster wheels |
| Conversion Cost | $1200 if all parts and services are purchased |
| A Chibikart for the People! Designed to use all off the shelf components and simple digital fabrication methods in construction. No machine tool access is required. Instructable and full documentation at WebPage | |

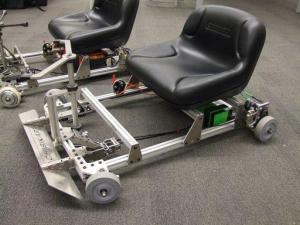

Chibikart 2
“Democratic People's Republic of Chibikart”
Last Updated 05-14-2013
