OwnerWilliam Brinsmead
Owner's Other EVs1992 GMC G-Van
1994 Chevrolet S-10 (sold)
Trike
1996 APS Bus ( scrapping for parts and batteries
Little Boy
My 1st EV
1973 Cadillac Hearse
2015 Tesla P85D
LocationReno, Nevada United States map
Email email image

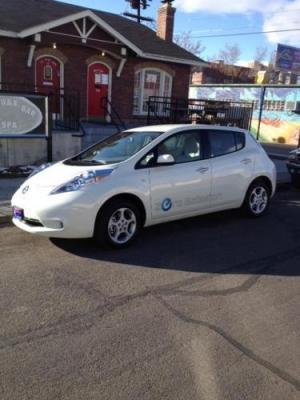

Vehicle2011 Nissan Leaf
Motor 3-Phase AC
80 kw
Batteries192, 3.80 Volt, Lithium-Ion
192 Automotive Energy Supply Corporation (AESC), 3.80 Volt, Lithium-
Ion
The battery pack is made up of 192 cells grouped into modules of 4
cells each (48 modules). Here are the cell specifications from AESC:

General specifications

Cell type: Laminate type
Cathode material: LiMn2O4 with LiNiO2
Anode material: Graphite
Rated capacity (0.3C): 33.1 Ah
Average voltage: 3.8 V

Dimensions

Length: 290 mm
Width: 216 mm
Thickness: 7.1mm
Weight: 799 g
System Voltage403 Volts
Charger on board
built in Charger 3.3 kW
1.4 kVA @ 120v; 4.8 kVA @ 240v
Both are via a J1772-2010 charging connector.
Heaterelectric
DC/DC Converter
built in
Instrumentationcomplicated
Top Speed90 MPH (144 KPH)
Accelerationbrisk
Range75 Miles (120 Kilometers)
varies with terrain and driving style
EV Miles
Start:8 Miles (12 Kilometers)
Current:50,000 Miles (80,450 Kilometers)
Total:49,992 Miles (80,437 Kilometers)
Seating Capacity5 adults
TiresYokohama AVD tour
Conversion Cost30k new
Additional FeaturesLED headlights, strong air conditioning, tire pressure monitors, security system, satellite radio, mp3
and cd player, full navigation system, power steering, brakes, windows, door locks, solar panel for the
12v acc. battery, remote monitoring and control of charging and HVAC from my Iphone. All is very well
thought out.
My first "new" car ,Great polished car! more info here: WebPage
