| Owner | Armando |
|---|---|
| Owner's Other EVs | Pocket Bike Murray ele Pocket Bike Razor MXZ500 Mini Bike Power Wheel Cart-El Barnett E-tractor 1978 Suzuki RM80 (A.K.A) BUZZ Trike Scoot SCRAP-E 2003 Dual Sportmoto 200 MR.GEEN 1994 Suzuki RM 125 Mini Ride on Mower |
| Location | Florida United States map |
| | |

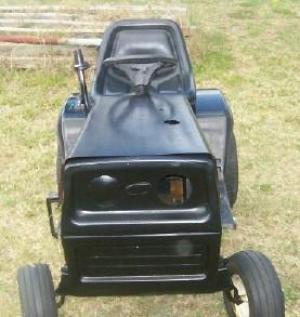

| Vehicle | Montgomery Wards rideon this is an old Montgomery Wards tractor a friend of mine found of all places in the trash.... |
| Motor | Unite Motor Permanent Magnet DC |
| Drivetrain | it had a 10 hp Briggs that still worked gone now...... 5 speed and reverse trans...... |
| Controller | Yi Yun 24v/40amp |
| Batteries | 2, 12.00 Volt, Lead-Acid, Gel using these batteries for range as well as for weight in the front of tractor...... |
| System Voltage | 24 Volts |
| Heater | don't think I'll need that... if so matches and some twigs, lol..... |
| Instrumentation | ammeter and battery gauge |
| Top Speed | 11 MPH (17 KPH) going to try to keep it around 11 mph but may set it up a little fast if the trans holds up..... |
| Acceleration | should be massive torque on takeoff like my other tractor..... |
| Range | with 50 Amp Hours it may be 3-4 hours.... but I guess we'll have to wait and see.... |
| Seating Capacity | 1 adult |
| Curb Weight | 200 Pounds (90 Kilograms) just a guess may be heavier.... |
| Tires | 18 inch rears |
| Conversion Time | just started |
| Conversion Cost | for the batteries $69.00... total should be around $160.00 WebPage |
| Additional Features | nothing fancy, will have a keyed switch ammeter and a battery gauge..... WebPage |
| I just started ripping all the useless stuff off. Spent 4 hours on it Super Bowl day... got it to where I need to be to start adding my parts.... it doesn't look pretty but I will do my best to try to make it look a little better.... this tractor is for my boy (well I had no choice, he called first dibbs on it when we got it) lol....anyway this is so he and I can race against each other......update3-18-2007 i spend 2 hours today and put in the drive system: right now it has a 500 watt motor 40amp controller 24volt power source .. took it for a test drive and is only doing 6mph in 5th gear... seen like the motor it working too hard so i will be putting in a 36v/750watt motor, that should help it out a little... i will take a vid when i change the motor... after that i will strip the paint off and put a new fresh paint to make it look nice... 3/20/07 test run WebPage | |
Montgomery Wards Tractor
“Rideon”
(under construction)
Last Updated 03-23-2009
