Vehicle1978 Suzuki RM80
UPDATE:

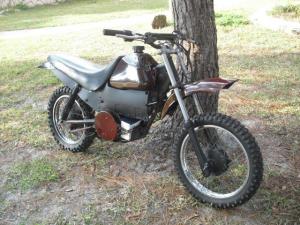

as of 11/18/2009, the bike had a complete make over(appearance wise) and now looks like a new bike not an old 30 year old dirt bike... my little girl and i worked very hard on it for 2 weekends and this is what we came up with... i like the look
Motor Permanent Magnet DC
DrivetrainWebPage
ControllerAlltrax
Batteries36.00 Volt, Lead-Acid, Gel
System Voltage36 Volts
ChargerYi Yun
Top Speed28 MPH (45 KPH)
35 mph at 36 volts with 3.8:1 gear ratio
46 mph at 48 volts with 3.8:1 gear ratio
present speed is 28 mph at 36 volts with 6:1 gear ratio
Accelerationvery good
4/8/08 update: 1/8 mile in 13.1 sec
Range20 minutes with current batteries at full throttle...
WebPage
EV Miles
Current:0 Miles (0 Kilometers)
Curb Weight0
dry weight with I.C.E. in 136lbs. will be from what I've calculated it will be 150 lbs.
Tiresfront 17
rear 14
knobbies
Conversion Timenot yet started just got the dirt bike
Conversion Costroughly 650.00
Additional Featuresvoltage gauge, ammeter, emergency cutoff switch, possibly a turbo mode...will later swap out the tires for street/off road tires... this is one step closer to converting a full size street legal motorcycle.. for those that have seen from day one(my first project) I started small and since been converting bigger and bigger projects... I am confident I can convert a street bike but just want to work out what ever kinks may come up from my other project(which I may point out that they have all worked out great :)




www.youtube.com/watch?v=EcdjhrNH1K0 WebPage
www.youtube.com/watch?v=55a5iEifNY4 WebPage
www.youtube.com/watch?v=dp2b2CmsXbU WebPage
