OwnerJens Guenther
LocationGoerlitz, Saxony Germany map
Web/EmailWebPage email image

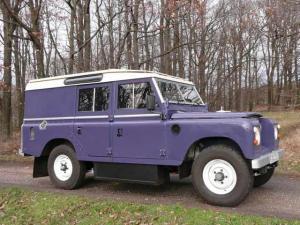

Vehicle1979 Land Rover Series III 109 Station Wagon
Rebuild from parts, some in really bad
conditions.
MotorSiemens 1PV5135 3-Phase AC
DrivetrainMotor, Clutch and Transferbox, without main
gear.
All over Ratio is 7,1:1 or 15,5:1 (with the
shifting Option in the transferbox)
Controller Scott Drive 200
A really simple, safe and powerfull controller
from New Zealand, ideal for the Siemens Motor.
Batteries110 Winston LFP 160 AHA, 3.20 Volt, Lithium-Ion
System Voltage352 Volts
ChargerBrusa NLG 513
6 Chargers for using 22kw Chargestations.
HeaterPlanar 44Diesel from Russia
DC/DC ConverterMeanwell HEP-600-15
Using 2 Converters
InstrumentationOriginal and ECPC 404
Top Speed75 MPH (120 KPH)
AccelerationMuch better than the original with 2,25 Liter
Petrol engine.
Range190 Miles (305 Kilometers)
Watt Hours/MileRound about 17 kw for 100 km.
EV Miles
Current:2,000 Miles (3,218 Kilometers)

    As of 9/30/2019
Seating Capacity5
Curb Weight0
With 2350 kg a Little bit heavy...
Tires7,5 x 16
Conversion TimeRoughly 3 Years
Conversion CostLike a new Land Rover...
If you like, you may watch my Website for more Informations:

WebPage
