OwnerScott Masterson
Owner's Other EVs2016 Bayliner 175
2013 Coda
LocationSpring, Texas United States map
WebWebPage
Vehicle2019 Stealth E40

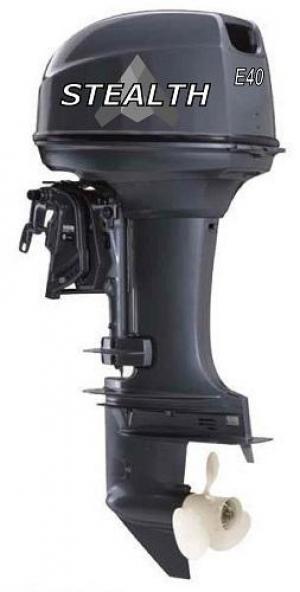

The outboard starts out life as a brand new
40HP

2 stroke outboard without the power head,
supplied by a Yamaha competitor.

All the components on this outboard, with the
exception of the all electric power head, can
be replaced with parts from a local Yamaha
Marine dealer.

The power head consists of a water cooled PMAC
motor and a 144v Sinusoidal Motor Controller.

The outboard features remote control, power
tilt and power trim.

Here's the best part, the Stealth E40 has all
the power of the Deep Blue 40 at the price of
the Cruise 10.0!
Motor ME1616
The ME1616 is a water cooled, Radial Air Gap,
Permanent Magnet Synchronous Motor (PMSM) with
an Internal Permanent Magnet Rotor (IPM).
ControllerKelly KLS14401-8080IPS
Batteries40 CTECHi 260Ah, 3.60 Volt, Lithium-Polymer
System Voltage144 Volts
Charger L144V/18A-3000L
Top Speed28 MPH (45 KPH)
AccelerationOn plane in seconds
Range30 Miles (48 Kilometers)
