EZE MXEZE MXEZE MX
OwnerR Wong
Owner's Other EVsHonda CBR600 F4/F4I
EZE Dirt Bike
2009 GIANT Reign X1
LocationEdmonton, Alberta Canada map

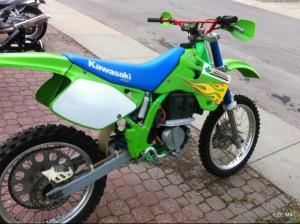

Vehicle1992 Kawasaki KX 250
A converted 2 stroke motocross bike, once a lead cycle, and now on lithium for its third life.
MotorAdvanced DC Series Wound DC
DrivetrainADC series motor, chain drive with jack shaft
ControllerAlltrax 7245
Up to 450 amps at 72 volts
Batteries16, 3.70 Volt, Lithium-Polymer
8 packs of 5.8ah lithium rated at 25C put together as a 2S4P pack at 60 volts. Batteries can put out a lot more than the motor can handle. Room to make it a 3S4P pack at 90 volts.
System Voltage60 Volts
Charger Icharger 208B x 3
BMS charger using the same 36 pin plug as my ebike. Can balance charge up to 24 cells
InstrumentationCycle Analyst
Top Speed50 MPH (80 KPH)
AccelerationOK as a trail bike but needs more power for MX performance.
Range15 Miles (24 Kilometers)
Watt Hours/Mile100 Wh/Mile
EV Miles
Current:10 Miles (16 Kilometers)

    As of 6/20/2013
Conversion Cost$1500 for the bike, $850 for batteries, $500 controller
Bike needs a bigger motor for an MX bike but I will burn this one out before doing the upgrade. Bike has room under the seat for another 4 packs of 5.8ah lithium. Needs a motor and controller that can run at 90 volts and 600 amps peak. That kind of power would bring the performance closer to an MX bike.

Still, its a fun ride to be checking the acreage in stealth mode.
