| Owner | Francisco Biasoto | ||||||
|---|---|---|---|---|---|---|---|
| Location | Minas Gerais Brazil map | ||||||
| Web/Email | WebPage | ||||||
| Vehicle | 2001 Fiat Brava ELX | ||||||
| Motor | Advanced DC A00-4009 Series Wound DC | ||||||
| Drivetrain | Fiat Torque 1.6 16V | ||||||
| Controller | Kelly KDZ72650 | ||||||
| Batteries | 6 Homemade Li-ion 18650 packs, 72.00 Volt, Lithium-Ion 5 packs with 300 notebooks cells. 1 pack with tablet cells Total 1800 18650 cells Each pack 72V 33Ah. Parallel BMS 45A | ||||||
| System Voltage | 72 Volts | ||||||
| Charger | Kelly 127V Multi stage charger The same I was using with lead acid batteries | ||||||
| Heater | no | ||||||
| Instrumentation | Voltmeter for main and auxiliary battery. Tachometer turned to ampmeter | ||||||
| Top Speed | 50 MPH (80 KPH) 80Km/h on a flat surfasse after one minute | ||||||
| Acceleration | 0 to 40Kh/h 8 sec. | ||||||
| Range | 43 Miles (69 Kilometers) | ||||||
| EV Miles |
| ||||||
| Seating Capacity | 5 adults | ||||||
| Curb Weight | 2,469 Pounds (1,122 Kilograms) 1120Kg , 50Kg less than original | ||||||
| Tires | 175/70 R14 | ||||||
| Conversion Time | two months to the first test(5Km). |

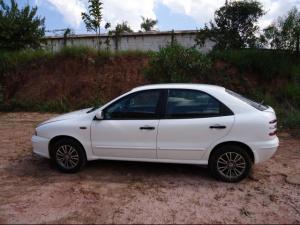

2001 Fiat Brava ELX
“Brava ELT”
Last Updated 06-21-2018
