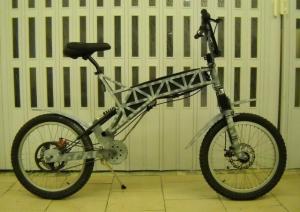

Vehicle2012 BMX
BMX steel frame homemade. Full suspension. Front & Rear disk brake
MotorUnite Motor MY1020 - 1000W Permanent Magnet DC
48V - 3200 RPM
Drivetrainchain - 11/90
ControllerKelly KDS 24-72 200A
Batteries4 x lipo 22,2 Volt 10.000 mAh 6s1p 20C, 0.00 Volt, Lithium-Polymer
12s 2p
System Voltage48 Volts
Charger
24V - 13,5A - 90min for full charge
InstrumentationVolt, Kph, Kw, Ah, Km, A, Wh/km, Amax, Vmin, amin, maxspeed, avgspeed, totKm, totAh...meter
Top Speed26 MPH (41 KPH)
Range18 Miles (28 Kilometers)
Watt Hours/Mile30 Wh/Mile
EV Miles
Current:54 Miles (86 Kilometers)

    As of 5/28/2012
Seating Capacity>90Kg
Curb Weight76 Pounds (34 Kilograms)
Tires20 x 2.25
Conversion Time2 weeks
Additional FeaturesI had to perform some simple lathe machining and CNC milling machine for the adaptation of certain components (rear axle, rear caliper bracket, crown adaptation, etc.)
I built the frame from scratch and thinking about a vehicle that looked like military vehicle. This bmx is heavier than the older models of BMX made ​​by me but certainly provides greater structural strength. The front suspension is an RST fork 26'. The rear suspension is composed of a central suspension spring from 1000lbs and two gas springs to the two sides.
