Paul's Electric Mower Mark ll

Owner	Paul Nilssen
Owner's Other EV	Ransomes Electric Mower
Location	Penguin, Tasmania Australia ^map
Email
Vehicle	Electric Mower Mark ll
Motor	Perm Motor 132 Permanent Magnet DC Motor good for up to 12kW, but draws less than 900W in this application. Way over powered!
Controller	No-name Chinese solenoid. On/off. Controlled by a switch on the handle as well as a key master switch.
Batteries	0.00 Volt, Nickel-Metal Hydride Prismatic Prius packs - Panasonic? 10 series packs 7.2V each
System Voltage	72 Volts
Charger	Two Chinese no-name 36V chargers in series with a centre tap common
Top Speed	As fast as you want to push
Range	One charge is enough for a small suburban back yard
Curb Weight	0 A little heavier than standard but ok for a level block
Conversion Cost	$10 for the dead mower from a Tip Shop. $0 used Prius packs $900 unused project motor $100 for odds and sods

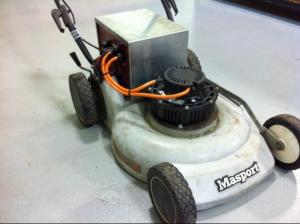

Son needed a mower and I had bits and pieces lying around in the shed. Perfect! Perm 132 way over-powered for this job, but it was the motor I had. Even cutting the grass, the motor draws only 12A. Runs at 3600rpm and so is a little faster than the original 3.5 B&S 4-stroke. Prius cells came from a friend who had a new pack installed due to bad connections. Batteries get a little hot during charging and in use, but are well clamped to avoid the swelling often displayed by high current/hot NiMh cells. Thanks to the blokes at work for welding and fabricating adaptor plate and battery box.
