| Owner | Kraig Schultz | ||
|---|---|---|---|
| Owner's Other EVs | 1975 Honda CB-125S Human-Electric Hybrid Sail Trike 2008 Custom BugE Tilting Delta Trike Motorized Mtn Bike 2 - Schwinn Motorized Mtn Bike 1 - Hummer 1987 Kann Linear LWB 1990 Ford Festiva 2015 Nissan Leaf SV | ||
| Location | Grand Haven, Michigan United States map | ||
| Web | WebPage | ||

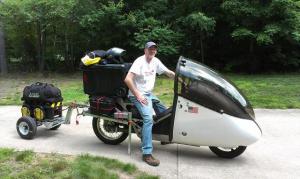

| Vehicle | 2011 Delta-11 Proto-type, 2 Wheeled, Electric Motorcycle | ||
| Motor | EnerTrac 604 Hi Speed Winding Brushless DC 30kW HUB Motor - I highly recommend. This is a nice motor. | ||
| Drivetrain | Enertrac Hub Motor | ||
| Controller | Kelly KHB12401 Controller #3: July 2015 Kelly KHB12401,24- 120V,400A,Opto BLDC Controller/With Regen. Set at 150A maximum (16kW to protect against my EGO). Installed at 12,900 miles on Odometer. Controller #2: After 9,000 miles Kelly KBL09401B burned out in July 2015 after applied too much voltage from new Chevy Volt Battieres. Specs were: Waterproof, 400A, 24- 96V - Set at 120 amp max. to protect batteries Controller #1: Kelly KBL12271, 24-120V, 270A, Burned out by riding it over two "5 mile hills" in a row after 3,900 miles in the bike. Was programmed at 120A Max. | ||
| Batteries | 28 Chevy Volt, 4.05 Volt, Lithium-Ion www.schultzengineering.us/delta-11- 12.htm Chevy Volt Batteries custom reconfigured to have 28 Cells (100V-112V operating range). Carry 1 or 2 45AH packs of 106V Nominal. Original Batteries were Enginer Real-Force: a7.6 kw-hr. 80 amp hour @ 96 volt Recommended 1C discharge max. But, I programmed controller to take 1.5C (12kW) max and batteries have been taking it OK. I recharge normally at .2C, but sometimes at .4C. In practice, I've never taken more than 5.2 kw-hour out of it during ride. That is to say, that is all this pack has ever been capable of giving in this application. | ||
| System Voltage | 112 Volts | ||
| Charger | Enginer (4) Four, 15 Amp, 55 Volt Chargers Recharge rate is 38 miles per hour (when ridden at commuter speeds). Recharge time is typically 1:15. Can recharge at J1772, any four 120VAC outlets, RV30 and RV50 outlets. 2 of my chargers are 110/220 so I can charge at chargepoints with those. 2 of my chargers are 110 only, so I have to find chargepoints that have level 1 and Level 2 to take advantage of faster charging. Sometimes will charge using two Chargepoint stations. I'll plug into the J1772 with two of my chargers at Level 2. Then plug into Level 1 outlet on one Chargepoint, and a Level 1 outlet on the second Chargepoint station. For 110V charging I either plug into a different circuit outlet for each charger (each charger draws 10A at 110V). At home, I've rigged an RV50 Plug that has a pigtail with 4 110V outlets coming out of it so it's easy to run all four chargers at once. I have each charger on a timer so that I can drop out 2 of the chargers early and not come in hard and fast to top off the batteries. Note: Fast charging does seem to put the batteries out of balance much more quickly than slow charging. Normally, I only have to balance my batteries once per 3,000 miles. | ||
| Heater | Only ride when above 32 degrees F (to avoid ice), so with warm clothing it is fine. Bodywork keeps you out of the wind. | ||
| DC/DC Converter | Sevcon 48 Volt -> 12Volt. Tapped from 1/2 of battery pack | ||
| Instrumentation | Cycle Analyst - I Love it! Volt, Amp Meter, Voltage logging with Enginer BMS, Cell Log 8s KillAWatt EZ meters used for monitoring FROM THE WALL recharge energy Also, get data from Chargepoint Charge stations when charge there. | ||
| Top Speed | 74 MPH (119 KPH) On Flat road, no wind, with front fairing on, black max toolbox on rear, 76 deg. F. | ||
| Acceleration | Good at 12kW setting. Keeps up with commuter traffic acceleration. | ||
| Range | 60 Miles (96 Kilometers) 60+ miles at 55mph 100+ miles at 35mph My average trip distance is 39.5 miles. See power to speed chart for more information on energy usage. | ||
| Watt Hours/Mile | 99 Wh/Mile Cycle Analyst: 57 WH/Mile @ 35 mph (100 mile ride) 80 WH/Mile @ 45-50 mph (55 mile ride) 96 Wh/Mile Average from the wall for first 12,000 miles. From the wall, Fuel Log for Lifetime: www.ecomodder.com/forum/em-fuel-log.php? vehicleid=6947 Kill-A-Watt EZ FROM THE WALL: 100 WH/Mile Average FROM WALL for 3,200 miles ridden in 2012 at normal commuting speeds and acceleration. Average Trip distance = 41 miles, Average Trip Speed = 38 mph 85 WH/Mile overall average for 1,975 miles ridden in 2011 season with nose on. Average trip distance 39.5 miles. FROM THE WALL Determined by dividing watts used to charge with Kill-A-Watt meter divided by miles traveled. | ||
| EV Miles |
| ||
| Seating Capacity | 1 or 2 based on optional body work. | ||
| Curb Weight | 490 Pounds (222 Kilograms) 200lbs just in batteries! | ||
| Tires | Dunlop Ninja Front Wheel 16" tire Enertrac Rear Wheel - 18" tire | ||
| Conversion Time | 2 months design 2 months build | ||
| Conversion Cost | Original Build $10K Mod's in 2012 +$2K 2015: Chevy Volt Battery pack $2300 for 16kWH, only use 9kWH. New controller $1,000. | ||
| Additional Features | Designed to be built without any welding. Frame is waterjet flat stock and machined billet aluminum. Center frame completely bolted together. Ninja 250 front forks, Yamaha Seca2 Rear shock and swing arm. 2-position seating improves comfort and aerodynamics. Can charge from 110VAC, RV30, RV50, J1772. Designed to accept full aerodynamic body. Modular design. Can be Bobber, Street fighter, streamliner or conventional 2 person motorcycle via bolt ons. | ||
| Video in Action: WebPage />
Fuel Log for Lifetime: WebPage /> I highly recommend Enertrac for their powerful hub motor and excellent service. 7-27-11: Updated max. speed, miles ridden, range and pictures. 8-9-11: Updated max. speed, miles ridden, range. 8-13-11: Updated miles ridden, weight 8-18-11: Updated miles ridden, max speed, Accel., range, watt/hrs per mile, cost, removed chart from pictures 9-1-11: Add data chart showing trip miles, KW-Hrs used, etc. and update total ridden to date. October 6, 2011: Update mile ridden. October 16, 2011: End of riding season updated miles ridden and average range and Watt hr per mile. May 9, 2012: Added charts to images of KW vs. Velocity and Range vs. Velocity, added Cycle Analyst to Instrumentation. August 30, 2012: Updated total miles. Bike now has single speed Enertrac motor. Averages 99 Wh/Mile from wall for normal commuting in 55mph zones. November 3, 2012: Updated Total Miles, Controller and motor updates, Charts and Pictures with 2012 riding season data. Updates in 2012 included: Added Cycle Analyst, Upgraded to 400A controller (from 270A), Single speed hub motor installed, upgraded suspension and steering to raise bike, mounted chargers on board, hooked up BMS units to automatically shut down charging. 6-13-13 Update: Updated Odometer. I turned over 7,000 miles total so far last weekend. I love the bike. 7/23/13: Updated miles ridden. Charger information. 9-2-2013: Updated Miles ridden, 9002 so far. 12-27-2014: Updated Miles Ridden, 12,300 so far. 9-4-15: Updated miles ridden to 14,800. Notes on Chevy Volt Batteries. WebPage /> 11-3-15: Updated miles ridden to 16,082 Added picture of bike with trailer and cargo racking added in summer of 2015. 9-3-16: Updated miles ridden to 17,500. 10-18-16: Updated total miles ridden to 18,737 1-14-18: UPdated total miles ridden to 21,240 2-11-18: Updated controller history | |||
Schultz Engineering Delta-11
“Delta-11”
Last Updated 02-11-2018
