8S Pack
OwnerBrandon Bridges
Owner's Other EVs1980 Huffy Bay Pointe 3 Speed Cruiser
2004 Razor Ground Force
2005 Razor MX500
1976 Raleigh Grand Prix
2008 Schwinn S-400
1994 Suzuki GN125
LocationShelby, North Carolina United States map
Email email image

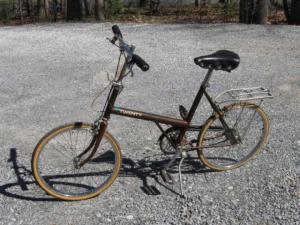

Vehicle1975 Raleigh Twenty
Originally a folding bike, the specific model I
have doesn't have the folding mechanism in the
middle of the frame. I prefer it that way.
Motor Aotema 36V 750W Brushed Permanent Magnet DC
750W Brushed Hub Motor in a 20" rim. Should Have
torque for days!
DrivetrainChain/Pedal
ControllerKelly KDS Mini Brushed DC Controller
Rated for 12 to 72V at 50A continuous and 200A
burst.
Batteries48.00 Volt, Lithium-Ion
Surplus "Orange Batteries" from AlarmHookup on
Ebay.
System Voltage48 Volts
Charger
None yet
HeaterCoat
InstrumentationHand for feeling temperatures
Range20 Miles (32 Kilometers)
Seating Capacity1 adult
Curb Weight45 Pounds (20 Kilograms)
Tires20x1.75
Conversion CostFuture:
$40 for BMS
$30 for charger
$10 for new chain
$20 for comfort seat
Coming back to this page in 2021, it's hard to believe that I have
been working on this project for over 10 years. Somehow, this
little bicycle has survived being sold in all that time, though
I've tried!

The project as a whole was stalled out by many things over time,
including lack of funds, but mostly lack of parts. The front fork
is very weak and the bottom bracket has a custom thread pitch, so
the normal options weren't really in the cards.

I stumbled upon a recumbent fork that would work after being cut
down, and purchased it along with the motor. I pressed a new
headset into the frame after a lot of research, and the bike is
currently at the shop getting tuned up and being converted to a
"fixie" due to rear hub issues.

The fork, if anyone is curious, is a Sunlite Threaded Recumbent
Fork in the following size:

"20" / 250 x 155 x 22.2 x 27.0mm"

The head tube had to be shortened, but that's quick work for a
bike shop.

New photos to follow
