| Owner | Andrej Pecjak - METRON Institute | ||||
|---|---|---|---|---|---|
| Owner's Other EVs | 1995 Renault Espace 1992 Renault R5 Elektro 2005 Mazda RX-8 2006 Smart Roadster 2010 Dacia Sandero EV 2005 Smart Roadster 1974 Volkswagen 1303 Beetle 2005 Mazda 5 | ||||
| Location | Podnart, Gorenjska Slovenia map | ||||
| Web/Email | WebPage | ||||

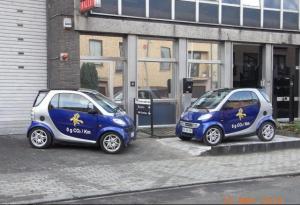

| Vehicle | 1999 Smart fortwo 11 different PIKIs have been built - one in Belgium and 10 in Slovenija. | ||||
| Motor | Letrika 3-Phase AC ISKRA (now Letrika) 15 kW AC motor | ||||
| Drivetrain | classic half automatic SMARt gearbox, fully functional | ||||
| Controller | Mahle - Letrika 450 A ISKRA (now Mahle Letrika) controller | ||||
| Batteries | Kokam 240 AH, 59.00 Volt, Lithium-Polymer We use different cells, all LiPO pouch cells 3,7 V nominal. Nominal voltage varies by models (price) from 52 to 66 V | ||||
| System Voltage | 52 Volts | ||||
| Charger | Elcon 3,3 kW air cooled Some have 3 phase charging 9 kW (option) | ||||
| Heater | 1,5 kW electric air heater or diesel heater | ||||
| DC/DC Converter | Elcon 600 Watt DC DC converter | ||||
| Instrumentation | REC display with SOC and cell voltages | ||||
| Top Speed | 75 MPH (120 KPH) Different top speeds from 70 to 80 mph, depending on model | ||||
| Acceleration | Like factory Smart | ||||
| Range | 70 Miles (112 Kilometers) range varies from 70 to 190 miles (one upgraded model with 33 kWh battery) | ||||
| Watt Hours/Mile | 150 Wh/Mile | ||||
| EV Miles |
| ||||
| Seating Capacity | 2 adults | ||||
| Curb Weight | 1,500 Pounds (681 Kilograms) | ||||
| Conversion Time | First in 1 month, second was done in 5 days, now we make them in small series | ||||
| Conversion Cost | 15000 $ (varies from 13000 to 20000) | ||||
| Additional Features | We make small series conversion, also possible to buy a "build it yourself" set for 8000 - 12.000 EUR (depending upon power, range and chargers). Basic set includes 12,5 kWh LiPolymer high density battery with BMS, motor-controller, adapter plate and coupler, basic wiring, HV box, charger 3,3 kW, air heater, display, vacuum pump, DCDC converter and instructions. |
1999 Smart ForTwo
“PIKI”
Last Updated 12-10-2016
