OwnerNap Pepin
Owner's Other EVLithium BugE
LocationSherwood Park, Alberta Canada map
Web/EmailWebPage WebPage email image

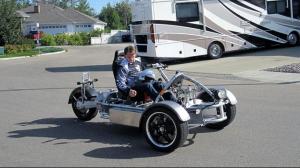

Vehicle Lithium Hawk
This is my second electric vehicle project. My
first was the Lithium BugE. This vehicle is a
reverse trike with >15kwh of lithium cells.
Motor AC31 3-Phase AC
50HP, 115 Ft-lbs
DrivetrainAC 31 Motor, Curtis 1238 controller, Goodyear
Eagle PD Synchronous kevlar belt and pulleys and
2007 Honda Goldwing GL1800 shaft drive rear end.
ControllerCurtis 1238
130vdc at 550 amps
Batteries1976 K2 Energy LFP26650P , 3.30 Volt, Lithium Iron Phosphate
LFP26650P Cells
System Voltage130 Volts
ChargerElcon 3kw
Controlled by a custom BMS
InstrumentationDaskota Digital Speedometer/Odometer
Top Speed104 MPH (167 KPH)
Geared for about 104mph or 167kph
Acceleration0 to 60mph in 7.5 seconds
Range125 Miles (201 Kilometers)
much less at highway speeds
Watt Hours/Mile121 Wh/Mile
Testing
EV Miles
Current:15 Miles (24 Kilometers)
Seating Capacity2 adults
Curb Weight1,100 Pounds (499 Kilograms)
Tires3
Conversion Time2 years. This is a ground up build.
Conversion Cost$30k?
Additional Featuresvariable regenerative braking. 1 seat or 2
