OwnerSteve
LocationToronto, Ontario Canada map
Email email image

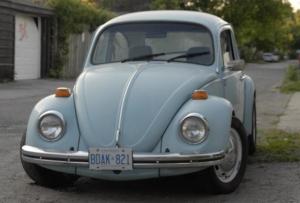

Vehicle1971 Volkswagen Bug
Purchased it rust free & road worthy.
MotorAdvanced DC Series Wound DC
6.7
DrivetrainManual Transmission
ControllerKelly KDZ12400
Batteries8, 12.00 Volt, Lead-Acid, Flooded
System Voltage96 Volts
Charger
8 individual 6A 12V Chargers
Heater12 volt p.o.s. + heated seats
DC/DC Converter Chennics
Ordered it from China as well. Try to use it as
little as possible. Car already had a marine
battery for acc.
InstrumentationPaktrakr, Ammeter
Top Speed50 MPH (80 KPH)
Still breaking in motor & batteries. That's as
much speed as I was hoping for
AccelerationAs good as i.c.e
RangeKeeping it close to home until all the kinks get
worked out
Seating Capacity2+Dog
Curb Weight0
Prob pretty close to stock
TiresFat ones on the front, fatter ones on the back
Conversion Time2-3 weeks
Conversion CostMotor - $500
Controller - $250
Charger - $150
Batteries - $500
DC-DC Converter - $70
Other bits $200
Adapter & Coupler $100 (homemade)
Additional FeaturesAdded a blower fan with some plumbing hardware to keep the motor
cooler. Made the coupler with Lovejoy connectors and clutch plate
center. Transmission side of the coupler kept slipping so I had them
welded into one piece. Waaaaaay better! Adapter was made with
aluminum plates stacked together to a total of 2 1/2". The carpet in
the boot just makes me feel better, sort of a "look at how clean ev's
are"
