OwnerOleg
Owner's Other EVsE-Scooter lead-acid
E-Scooter A123
Trial bicycle
Electric Bicycle
LocationNice, Provence-Alpes-Cote d'Azur France map

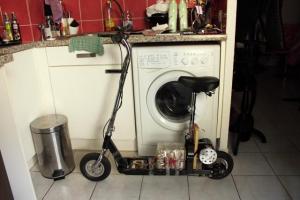

Vehicle Scooter
Motor
1000w 48v
Controller
24-60v 1000w controller
Batteries52.80 Volt,
6.9ah

made of 48 A123 cells (3.3v 2.3ah)
Charger
IMAX B8 charger running off a comupter power supply

100% charge in 3 hours
Top Speed15 MPH (24 KPH)
Accelerationdepends on how you twist the throttle, one milimeter too much throlle will result in lifting the front tire off the ground
Range12 Miles (19 Kilometers)
Curb Weight58 Pounds (26 Kilograms)
built as an uphill machine

UPDATE: this scooter got size #25 chain and sprockets, after 40 miles with the 1000w motor the sprocket on the rear wheel was destroyed (tooth destroyed by the force of the motor)

Motor is able to do 40 miles per hour but it is geared for 15 miles per hour top speed and scary torque

lessons learned: i need a vehicle that has better brakes, a suspension and does not have any chain or sprockets to wear out (next EV needs a hub motor)
