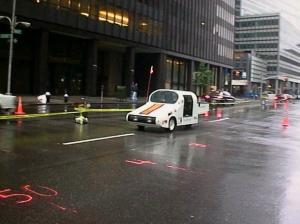

Tour de Sol 98 in NYC
OwnerUnion-Endicott High School
Owner's Other EVs1994 Solectria Force GT
1984 Pontiac Fiero
LocationEndicott, New York United States map
VehicleSebring Auto-Cycle Zzipper
MotorAdvanced DC X91-4002 Series Wound DC
72-120 Volt
DrivetrainTwo speed gearbox
ControllerCurtis 1209B-6402
Batteries12 Trojan T-145, 6.00 Volt, Lead-Acid, Flooded
System Voltage72 Volts
ChargerZivan NG3
DC/DC Converter
(coming soon)
Instrumentationa)E-meter w/RS-232 port
b)2nd E-Meter for Solar Panel
Top Speed60 MPH (96 KPH)
Range80 Miles (128 Kilometers)
Seating Capacity2 adults
Curb Weight2,030 Pounds (922 Kilograms)
TiresGoodyear Hilander-CT
This unique vehicle was donated to our project by Tom Tucker, CEO of EZ-Red batteries in Deposit, NY. This is the second vehicle for the team, the first being a scatch built 3 wheeler. We have done extensive modifications to the original vehicle since we recieved it in the Fall of 1997.

We removed the wooden truck bed and modified the battery box to fit the new batteries. We took the vehicle to the 1998 Tour de Sol but were not able to complete most of the course due to problems with our old charger(Zivan K2).
