Union-Endicott High School's 1994 Solectria Force

Owner	Union-Endicott High School
Owner's Other EVs	Zzipper 1984 Pontiac Fiero
Location	Endicott, New York United States ^map
Vehicle	1994 Geo Metro Solectria Force (OEM Electric)
Motor	Azure Dynamics/Solectria ACgt20 3-Phase AC two 60 HP air cooled
Drivetrain	Solectria single speed
Controller	Azure Dynamics/Solectria AC320 144 Volt, 3 phase
Batteries	0.00 Volt, Lead-Acid, AGM
System Voltage	144 Volts
Charger	a) on-board battery charger (240 VAC, 8-hour full charge) b) car roof and hood mounted solar panel system 180W
Heater	yes
DC/DC Converter	Azure Dynamics/Solectria
Instrumentation	a) Solectria AH meter b) Voltmeter c) Ammeter
Top Speed	70 MPH (112 KPH)
Range	120 Miles (193 Kilometers) with original NiCD batteries
Seating Capacity	2 adults
Curb Weight	2,271 Pounds (1,032 Kilograms)
Tires	Goodyear Invicta
Club This car was givin to UEHS technology club by NYSEG (New York State Electric and Gas)on August 15,2001. It came with the batteries totally discharged and we were told the charger is not operating properly. There is no label on the charger and some of the literature we recieved from NYSEG seems to indicate it is from Lockheed Martin Control Systems and uses the Badicheq system. We haven't had time to confirm this so if you recognise the charger send an email with what you know about it.

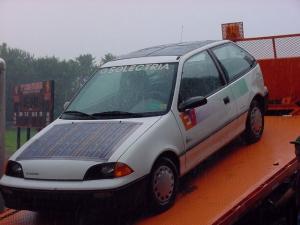

1994 Solectria Force GT
