Front Sub-PackRear Sub-PackRear Sub-Pack Installed
OwnerCharlie Mellone
LocationRedwood City, California United States map
Web/EmailWebPage email image

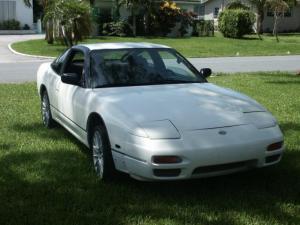

Vehicle1993 Nissan 240SX
Clutchless 5-speed
MotorNetgain Warp 9 Series Wound DC
ControllerCafe Electric Zilla 1KHV
Batteries48 AESC 66Ahr (Better Place Pack), 3.80 Volt, Lithium-Ion
Pack re-used modules from a Better Place pack. The new pack is configured as 2P24S modules or 4P48S cells. Each module is 2p2s cells.
System Voltage182 Volts
ChargerManzanita Micro PFC-20
HeaterNone
DC/DC ConverterMeanwell
InstrumentationVintage Voltage BMS, Fanless PC with Touch Screen
Top Speed110 MPH (176 KPH)
Range60 Miles (96 Kilometers)
Watt Hours/Mile325 Wh/Mile
Actual values measured over a 18 mile commute.
Moderately hilly highway. Very consistent
performance.
EV Miles
Start:132,050 Miles (212,468 Kilometers)
Current:155,000 Miles (249,395 Kilometers)
Total:22,950 Miles (36,926 Kilometers)

    As of 11/17/2016
Seating Capacity4 adults
Curb Weight3,300 Pounds (1,499 Kilograms)
Estimate
TiresP205-65R15
Low Rolling Resistance Tires
On the road since January 19, 2008.
Daily Driver to work 20 miles a day, mostly highway.
