OwnerSeppo Lindborg
Owner's Other EVs1999 Peugeot Partner Electric
2010 Leone Ecopower
LocationVantaa, Uusimaa Finland map

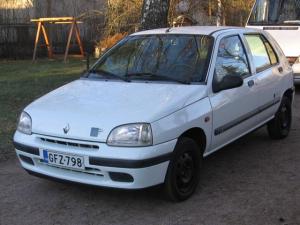

Vehicle1996 Renault Clio Electrique Lithium
The car is a 'semi-conversion'. The base car is factory-built
electric with NiCd batteries. The car was bought without batteries
and was equipped with a lithium pack, first lithium cobalt oxide
and then lithium iron phosphate.
MotorAsea Brown Boveri Separately Excited DC
ABB GN 21 M4A, 21 kW
DrivetrainFront wheel drive, single speed gear box, gear ratio 8,02
Controller
ABB BA 20
Batteries34 Thunder Sky TS-LFP160AHA, 3.20 Volt, Lithium-Ion
with FEVT BMS. The earlier pack of lithium cobalt oxide cells
was changed to lithium iron phosphate technology at 2011 at
60 000 kms. This was because the old pack was developing
elevated internal impedance on some cells and had lost some
capacity. Suspected reason was midmost cells overheating on
long summer drives. The cooler cells were still OK.
System Voltage109 Volts
ChargerFEVT PAC3200
HeaterMES-DEA RM4 electric water heater
DC/DC Converter
14V/55A
InstrumentationFEVT battery management system, touch screen
Top Speed100 km/h (62 mph)
AccelerationOK, close to the ICE model, above 70-80 km/h starts to get
sluggish
RangeNot actively tested; 80...100 km stretches (50-60 miles) driven so
far.
Watt Hours/Mile148-170 Wh/km (238-274 Wh/mile) at long-range road driving
at appr. 80 km/h
EV Miles
Current:40,000 Miles (64,360 Kilometers)
Seating Capacity5 adults (in practice 4)

Curb Weight2,455 Pounds (1,115 Kilograms)
Tires165x70 R13 C
Conversion TimeCalendar time: In excess of two years
My time: a couple of weeks
FEVT time: A lot
Additional Features
