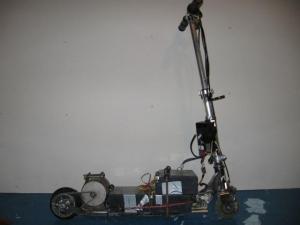

top view of scootermotor viewdrive chainbatteriescontroller
OwnerSimon Beausoleil
Owner's Other EVElectric Bicycle
LocationNotre Dame des Prairies, Quebec Canada map
Email email image
Vehicle2007 Rage
the frame is a standard rage aluminum scooter
MotorRad2Go rad2go e-36 great white 800w Permanent Magnet DC
I bought the motor at www.electricscooterparts.com the motor is very powerful, quick acceleration without assistance and will climb hills very well
Drivetrainno:25 chain drive 11 tooth on motor and approx 50 on wheel
Controller ct-660b9
the controller has a 36v 40A capacity. after 20 minutes of non-stop use it was not even warm ! and it cost 20$ :)
Batteries3 B and B bp17-12, 12.00 Volt, Lead-Acid, AGM
batteries are 13 lbs each
System Voltage36 Volts
Charger generic brand charger
36v @ 2.5 a fan cooled
Top Speed22 MPH (35 KPH)
pretty scary on a little scooter like that
Accelerationpretty fast !!!
Rangenot measured but I think is very long
Seating Capacity1 adult
Curb Weight60 Pounds (27 Kilograms)
most of weight is batteries
Tiresrear 5 1/2 from razor e-100
Conversion Time2 weeks
Conversion Costapprox 300$$
Additional Featurescaliper brake on the front wheel
very fun to drive !!!
