motor
OwnerSimon Beausoleil
Owner's Other EVRage Scooter
LocationNotre Dame des Prairies, Quebec Canada map
Email email image
Vehicle2007

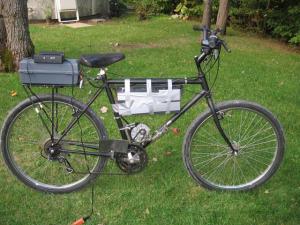

scrap bicycle repaired and converted to electric power
MotorUnite Motor 350w geared 24volt Permanent Magnet DC
I bought this motor on tncscooters.com it has lots of power !!! the bike can ride two 150 lbs adults uphill!!! (at low speed but it can!!!)
Drivetrainno: 35 chain on the small sprocket of the front pedals (the pedals has been chopped I welded a steel bar for the feet)
Controller generic brand
24v 500w generic controller this controller is awesome, I ride the bicycle for 15km at full throttle and it came slightly warm
Batteries2 B and B BP1217, 12.00 Volt, Lead-Acid, AGM
17ah batteries gives the bike a range of approx 20km at full throttle (more at lower speed)
System Voltage24 Volts
Charger generic charger
2.5a fan cooled (not the one in the picture) wonderful, recharges empty batteries in approx 5 hours
Heaterno heater need gloves an leather jacket on cold days
DC/DC Converter homemade
DC 24 to 5 and 12 volt, for powering equipment
Instrumentationhomemade 24v battery tester
dc/dc converter
Top Speed26 MPH (41 KPH)
top speed is a bit long to get (approx 20 seconds) because i have to shift trough the 6 rear gears
Accelerationin the first gear the acceleration is very good
Range12 Miles (19 Kilometers)
12 at full throttle but can be 20 if you slow down
Seating Capacityone but it can handle another passenger on the gray box at the rear
Curb Weight65 Pounds (29 Kilograms)
batteries 13.5 lbs each
motor 10 lbs
Tiresrear 26" racing slick front 24" regular wheel
the front wheel was a 26" slick before someone have an accident with!!!
Conversion Time1 hours for installing the components and 1 hour for making the motor holding plate (this not include the 2 weeks i wait for the parts to come from the USA)
Conversion Costaround 300$$$
