| Owner | Wichito Chitisan | ||||
|---|---|---|---|---|---|
| Owner's Other EV | EV- Takorai | ||||
| Location | Korat, Nakornrachasima Thailand map | ||||
| Web/Email | WebPage | ||||

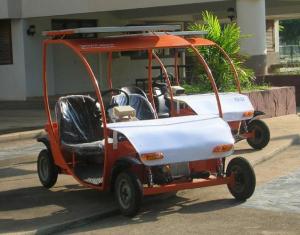

| Vehicle | 2006 Takorai EV-2.x Solar & Electric Power | ||||
| Motor | Permanent Magnet DC 2x500W 24Vdc Permanent Magnet DC Motors | ||||
| Controller | owner made 24-36V 1500W | ||||
| Batteries | 2 26A, 12.00 Volt, Lead-Acid, Gel 26 Ah | ||||
| System Voltage | 24 Volts | ||||
| Charger | solar & electric power charger | ||||
| Instrumentation | Speed, volts.,odo,clock | ||||
| Top Speed | 15 MPH (24 KPH) | ||||
| Range | 10 Miles (16 Kilometers) depending on speed & weight | ||||
| EV Miles |
| ||||
| Seating Capacity | 2 | ||||
| Curb Weight | 330 Pounds (150 Kilograms) | ||||
| Tires | 3.00-8 | ||||
| Conversion Time | 2 month | ||||
| Additional Features | 100W Solar power on the roof and electric power 220 V charger on board | ||||
| Using in Rajamangala university ISAN Nakornrachasima THAILAND from june 2006 to NOW. | |||||
TAKORAI
“TAKORAI-2”
Last Updated 07-21-2008
