| Owner | Tony Ascrizzi | ||
|---|---|---|---|
| Owner's Other EVs | 1995 Toyota XtraCab 1987 Volkswagen Golf | ||
| Location | New Underwood, South Dakota United States map | ||
| Web/Email | WebPage | ||
| Vehicle | 1980 Volkswagen Rabbit The Rabbit is battered and bruised after the 2006 fire, but is now functional May 2011, after repairs. Still running the 10 year old DYNO batteries. Need Lester 96 volt charger and windshield and a few misc trim parts to finish restoration. | ||
| Motor | Advanced DC 203-06-4001 Series Wound DC 8" | ||
| Drivetrain | Original 4 speed transmission with clutch | ||
| Controller | DC Power Systems DCP-600 Raptor | ||
| Batteries | 16 Dyno T-125 Equiv., 6.00 Volt, Lead-Acid, Flooded | ||
| System Voltage | 96 Volts | ||
| Charger | K and W BC-20 | ||
| Instrumentation | a) Ammeter b) Voltmeter c) E-Meter | ||
| Top Speed | 75 MPH (120 KPH) | ||
| Range | 50 Miles (80 Kilometers) Great mileage if I can keep my foot out of it. | ||
| EV Miles |
| ||
| Seating Capacity | 2 adults | ||
| Curb Weight | 3,022 Pounds (1,373 Kilograms) | ||
| Tires | Michelin X 195/13 LRR | ||
| Additional Features | 120 Volt regenerative braking using alternator driven by motor tailshaft through electric clutch. |

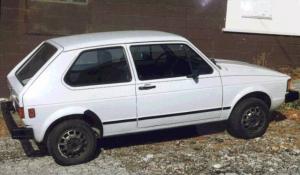

1980 Volkswagen Rabbit
Last Updated 07-26-2011
