| Owner | Jason Ribeiro |
|---|---|
| Owner's Other EV | Power Assist Bike |
| Location | Peterborough, Ontario Canada map |
| Web/Email | WebPage |
| Vehicle | scratch-built |
| Motor | Toyota Modified Toyota gear reduction starter motor |
| Drivetrain | Belt Drive, 3.2:1 Reduction |
| Controller | Ford Starter Solenoid |
| Batteries | 1, 12.00 Volt, Lead-Acid, AGM |
| System Voltage | 12 Volts |
| Charger | MobiLine 12v, 6amp |
| Top Speed | 22 MPH (35 KPH) |
| Acceleration | Tire-chirping |
| Seating Capacity | 1 |
| Curb Weight | 120 Pounds (54 Kilograms) |
| Tires | 10" Solid Rubber |
| Conversion Time | 1 Summer |
| Have tried a few different motors and gear ratios before settling on the Toyota starter. First attempt was with a large Ford starter but it was drawing some huge current and was very inneficient. Second try was with a 4.5kW aircraft starter motor, but likewise with the current draw; the batteries couldn't keep up. The brake should be upgraded but the kart is a lot of fun to drive...it can even drift! | |

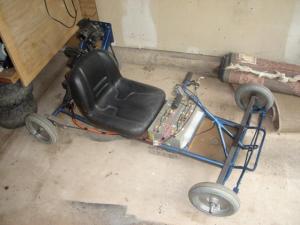

Go Kart
Last Updated 05-30-2008
