OwnerGilles Nadeau
LocationMarieville, Quebec Canada map
Email email image

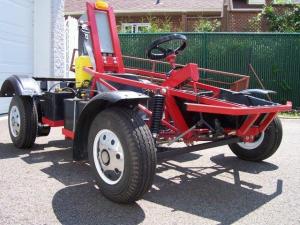

Vehicle2006 Dirt Devil
MotorPerm Motor PMG-132 Permanent Magnet DC
48 volts, 2410 rpm, 7 hp, 110 amp continuous
DrivetrainLive axles, direct chain # 40, 1 rears wheels drive
ControllerAlltrax AXE-4834 300 amp
programmable
5000 Ohm potentiometer
Batteries4 Interstate DCS-100L, 12.84 Volt, Lead-Acid, AGM
Deep cycles 100Ah 69 lbs
System Voltage48 Volts
Charger Off board Nautilus Motomaster
4 smart charger 12 volts 15 amp charge 7 1/2 hrs
Top Speedsprocket 1, ratio 5,4 : 1, 22 mph, 35 km/h
speed sprocket 2, ratio 4,154 : 1, 28 mph, 46 km/h
speed sprocket 3, ratio 3,375 : 1, 35 mph, 56 km/h
Rangesprocket 1; 3 hours at 22 mph, 35 km/h
speed sprocket 2; 2,5 hours at 28 mph, 46 km/h
Seating Capacity1 adult or 1 child 48"
Curb Weight500 Pounds (227 Kilograms)
Conversion Time200 hrs study, design, built and repair bugs
When the rear shaft broke, I had to reinforce the rear axle (too much stress), at the same time I
put an extension on the motor shaft to go to the drive sprocket, it removed a lot of stress to the
motor, because the sprocket is not directly on the motor shaft and it has a rubber coupler to take
some of the bad torque.
