OwnerByron Izenbaard
LocationKalamazoo, Michigan United States map
Web/EmailWebPage email image
Vehicle1994 Ford Ranger

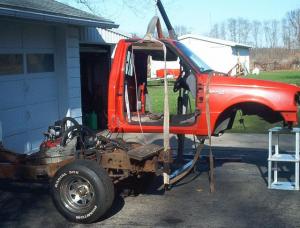

This was a normal ICE until I found it. Now it is going through the ominous task of rebuilding, restoration, and conversion.
MotorWarfield Warp 9 Series Wound DC
RED FUN BIG
Drivetrain5-Speed manual transmission, made by Mazda (whole truck was made by them purchased by Ford).
Controller in progress
We are building our own mosfet controller that will be able to be programed and configured at will.
Batteries12 Trojan SCS225, 12.00 Volt, Lead-Acid, Flooded
or maybe or Optima 34/78 AGMs
In progress of finding what is needed making a test to make sure
System Voltage144 Volts
Charger Homemade
Vicor powered opamp controlled
HeaterNo heat takes energy
DC/DC Converter not sure
InstrumentationComputerized
Top Speed100 MPH (160 KPH)
not sure
AccelerationInfinate torque at 0 RPM
Range50 Miles (80 Kilometers)
To School and back
EV Miles
Start:110,000 Miles (176,990 Kilometers)
Current:115,000 Miles (185,035 Kilometers)
Total:5,000 Miles (8,045 Kilometers)

    As of 7/30/2006
Seating Capacity3 pasangers
Tires4
Conversion Time1000+ hours
Conversion Costaround $6000 at the moment
