battery
OwnerResta Gianni
Owner's Other EVs2009 Scooter
2003 Oxygen Lepton
2015 Zavaj 563
LocationImola, Emilia Romagna Italy map
Email email image

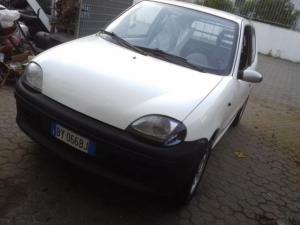

Vehicle2001 Fiat Seicento Elettra Van
Fiat Seicento elettra, converted to lithium on
2023 with modules taked from battery of a
crashed
Fiat new 500e
MotorSiemens 1-LH5118 3-Phase AC
oem 30kW motor
DrivetrainRWD
ControllerSiemens Simotion
oem inverter
Batteries64 Samsung 2x60Ah li-ion cells, 230.00 Volt, Lithium-Ion
4 modules 12S2P + 2 modules 8S2P. Total
64S2P battery. Original samsung balancers
(MAX17843 ic) and compatible BMS from WDR
automatisering
System Voltage230 Volts
ChargerSiemens CH685
oem lead acid charger with end tension fixed to
260V for compatibility with li-ion battery
Heater1,5kW 220V PTC heater (old diesel webasto
removed)
DC/DC ConverterSiemens oem
oem dc/dc converter
InstrumentationFiat oem. Charge indicator drive in PWM from BMS
Top Speed65 MPH (104 KPH)
Acceleration5 sec for 0-50km/h
Range125 Miles (201 Kilometers)
calculated, not yet tested
EV Miles
Start:19,900 Miles (32,019 Kilometers)

    As of 7/4/2025
Seating Capacity2
Curb Weight2,228 Pounds (1,012 Kilograms)
1010kg
Tires165/70R13 79T
Conversion Cost7500E (used car + used battery + repaint + some
spares parts)
