OwnerMax M
Owner's Other EV1997 SEAT Ibiza
LocationBuenos Aires, Buenos Aires Argentina map
Web/EmailWebPage email image

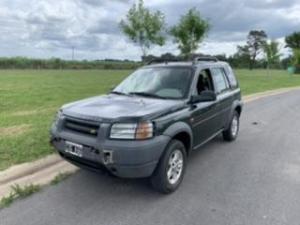

Vehicle1998 Land Rover Freelander
MotorHPEVS AC51 3-Phase AC
9" induction trifasic asyncronous motor
DrivetrainManual 5 gears. 4x4 with transfer box (IRD)
ControllerCurtis 1239E
Batteries135 CALB/Skyenergy CAM72 / L135F72, 3.20 Volt, Lithium Iron Phosphate
45S3P pack splitted in front and rear
System Voltage144 Volts
Charger SMHC3
Dual parallel chargers conected via canbus to
BMS
HeaterCeramic elements
DC/DC Converter
Dual parallel DC-DC converters. 100A max
Top Speed90 MPH (144 KPH)
AccelerationGood
Range70 Miles (112 Kilometers)
At least depending on way of use
EV Miles
Start:161,000 Miles (259,049 Kilometers)
Current:161,200 Miles (259,370 Kilometers)
Total:200 Miles (321 Kilometers)

    As of 2/29/2020
Seating Capacity5 adults
Curb Weight3,300 Pounds (1,499 Kilograms)
Conversion Time8 months
Conversion Cost35000 usd
Additional FeaturesAir conditioning, hydraulic and water pump moved by an independent 3
kw motor.
