LEV50N-8Burned contactNew cellNew cell detailsCapacity testing
OwnerDompaEV
Owner's Other EVs1974 Volkswagen Beetle
2017 Renault ZOE ZE40
1973 Volkswagen Beetle
LocationZagreb, Zagreb Croatia (Hrvatska) map
Email email image

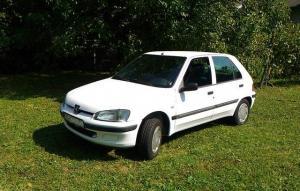

Vehicle2002 Peugeot 106 electrique
Factory built EV
MotorLeroy Somer Separately Excited DC
11/20kW (nominal/peak), 127Nm, 72 kg
DrivetrainReduction gearbox 1/7.2
ControllerSAGEM 3YXSY3000
120 Volt 200 Amp (IGBT) 400A/600V
Batteries80 ICS 13/330/162, 3.60 Volt, Lithium-Ion
Until summer 2021 - 40 Yuasa LEV50N cells factory packed in 5 modules (8 50Ah cells each) coming from scrapped MiEV

During July 2021 battery pack has been upgraded to Li-Tec 50Ah cells coming from scrapped 2015 electric smart arranged in 40S2P
System Voltage144 Volts
ChargerSagem
3.2kW built-in charger, currently derated to
2.3kW.
HeaterWebasto ThermoTop C (gasoline)
DC/DC ConverterSagem
Built-in, 70A/13.4V
InstrumentationOriginal + Voltmeter
Top Speed60 MPH (96 KPH)
Factory limited speed
Range96 Miles (154 Kilometers)
Currently only 40km due to batteries not
fully
charged. Expect to be around 50km with new
charger.
2017-Jun New charger installed, range
according to tests is at least 60km now
2021-Aug With new battery pack range increased to 155 km
Watt Hours/Mile163 Wh/Mile
So far best result is 102 Wh/km, wall to wheel
EV Miles
Current:35,189 Miles (56,619 Kilometers)

    As of 8/20/2021
Seating Capacity4 adults
Curb Weight2,100 Pounds (954 Kilograms)
estimation, not meassured yet
TiresSava - all year around
Conversion Cost1750€ car
400€ car transport from Germany
950€ batteries
200€ paper work
40€ custom built rear battery box
25€ power meter
20€ rear brake repair
50€ various "details"
2000€ new battery pack
Car (without batteries) was purchased during spring 2016 from
car dealer in Germany.
It was not in best shape at the time of arrival, so some time
has been spent in fixing it.
Odometer was on 25828km at the time of purchase.

2019 July - Since I'm unable to activate built-in BMS in battery modules, I had to manually balance battery packs after 3 years of use. I simply connected all 5 modules in parallel and charged them to 32.6 V. Surprisingly, batteries within modules are all within 5 mV

2021 July - Due to need for longer range, battery pack has been upgraded to 80 Li-Tec 50Ah cells coming from scrapped electric smart, which gives 14.4kWh nominal capacity.
Pack is divided in two parts, 9S2P in front box and 31S2P in the rear box. Two separate Ant BMS boards (purchased on AliExpress) are monitoring and balansing cells.
