chargeunder the hood
OwnerPeter Pikl
Owner's Other EVs1996 Citroen AX
2004 Citroen C2
LocationVrhnika, Notranjska Slovenija map
Email email image

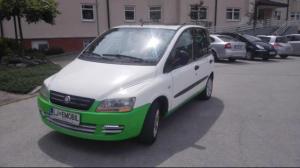

Vehicle2006 Fiat Multipla
Monovulume car with a lot of space.
MotorStoja AC 29 kW 3-Phase AC
Converter and motor come together in the
package.
Maximum power is 80kW but permanent only 29.
Water cooled motor and controller, but each need
their own water cooling istallation.
Drivetrainstandard manual gearbox with clutch.
ControllerStoja 3 phase converer
specaility .... converter could charge batteries
from AC source.
Batteries52 Kokam 150Ah, 3.70 Volt, Lithium-Polymer
30 kWh
System Voltage200 Volts
ChargerElcon 3kW
HeaterWebasto OIL heater 5kW (sorry)
DC/DC ConverterMeanwell AC-DC 600W
It works also with DC input
InstrumentationDIY instrumentation added.
Top Speed80 MPH (128 KPH)
Accelerationnice... to 50mph 11s
Range140 Miles (225 Kilometers)
EV Miles
Start:79,600 Miles (128,076 Kilometers)
Current:84,500 Miles (135,960 Kilometers)
Total:4,900 Miles (7,884 Kilometers)

    As of 6/29/2016
Seating Capacity6 adults
Curb Weight3,480 Pounds (1,581 Kilograms)
Tires4
Conversion Time1 year
Conversion Coststil counting....
apx 20kEUR
