| Owner | Shawn Van Giesen |
|---|---|
| Location | Seattle, Washington United States map |
| Vehicle | 2010 Schwinn Schwinn Stingray Chopper |
| Motor | Currie 900W Permanent Magnet DC Twin 900W Currie Motors with Chain Drive |
| Controller | Alltrax SPM 200 200 Amp 7inch |
| Batteries | 8 20Ah HighPower, 26.00 Volt, Lithium Iron Phosphate From Lithium Storage Thanks Mike! |
| System Voltage | 24 Volts |
| Charger | 10amp 30V Bench supply set to 28.5V full charge from drained is 2 hours. |
| Heater | My Wife |
| Instrumentation | Cell Logger |
| Top Speed | 30 MPH (48 KPH) |
| Acceleration | 0-30 in 6 seconds |
| Range | 12 Miles (19 Kilometers) urban driving, hill, stops, starts |
| Watt Hours/Mile | 50 Wh/Mile |
| Seating Capacity | (1) 200lb 43 year old nerd looking for a bigger bike. |
| Curb Weight | 145 Pounds (65 Kilograms) |
| Conversion Time | 80 hours of R&D... Re-purchasing and Destruction... |
| Conversion Cost | 1400.00 |
| Additional Features | Upgraded to disk brakes front and back. |
| I had a lot of fun building this bike. Next is a full size motorcycle Rat Bike then conversion of my old school Triumph GT6. | |

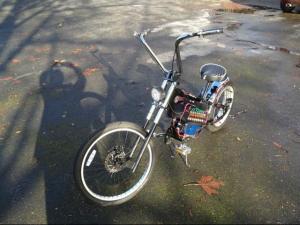

2010 Schwinn Stingray
“BikerNerd”
Last Updated 01-02-2015
