Ian's 2001 Honda NSR150

Owner	Ian Hooper
Owner's Other EVs	1990 Mazda MX5 Miata 2000 Mazda RX7
Location	Perth, Western Australia Australia ^map
Web	WebPage

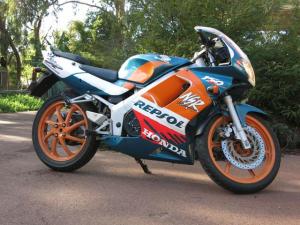

Vehicle	2001 Honda NSR150 SP My first motorbike conversion, and a bit of a demonstration vehicle for many of the products I make for electric vehicles.
Motor	Mars ME1003 Permanent Magnet DC
Controller	Zeva MC600C 150V 600A, CAN bus enabled
Batteries	44 other K2 26650EV, 3.20 Volt, Lithium Iron Phosphate 44S6P configuration, 264 cells in total.
System Voltage	140 Volts
Charger	Elcon 144V 2kW
Heater	Warm jacket?
DC/DC Converter	Chennic 35A
Instrumentation	ZEVA EVMS
Top Speed	80 MPH (128 KPH)
Acceleration	Similar 0-60 time as the original bike, but more responsive
Range	25 Miles (40 Kilometers) 25 miles at city speed, less at highway speed! Paltry range due to small 2.7kWh battery pack.
Seating Capacity	2 adults
Conversion Time	5 months
Conversion Cost	About $5K
I purchased the bike a few years ago but quickly got sick of the unreliable 2-stroke engine, so decided to convert it to electric. It was intended as a toy and occasional commuter vehicle so I set out with fairly modest performance goals: similar acceleration to the original, and whatever battery size would be easy to fit. A secondary goal for the motorbike project was as a demo vehicle for some of my new ZEVA products including updated motor controller with CAN bus, and the new Electric Vehicle Management System (EVMS). I've written up the project including lots of pictures, available at the Web Page link near the top of this page.
