| Owner | Pat Sweeney | ||
|---|---|---|---|
| Owner's Other EVs | E-Bent-1 1988 Pontiac Fiero | ||
| Location | Tenino, Washington United States map | ||
| | |||
| Vehicle | 2013 Lotus 7 Replica of a 1950s Lotus 7 roadster. | ||
| Drivetrain | dual 6.7" traction motors driving the 3rd member | ||
| Controller | Cafe Electric Z1k HV Zilla 1k | ||
| Batteries | 48 CALB/Skyenergy 100AH, 3.20 Volt, Lithium-Ion using Mini BMS centralized system. | ||
| System Voltage | 156 Volts | ||
| Charger | Manzanita Micro PFC20 Mini BMS controls the charger. | ||
| Heater | The Sun | ||
| DC/DC Converter | Kepco 22 amp universal input ac 80 to 250V/ DC 110 to 370V | ||
| Top Speed | 80 MPH (128 KPH) RPM limited | ||
| Range | 100 Miles (160 Kilometers) | ||
| EV Miles |
| ||
| Seating Capacity | 2 sun loving individuals. (no top) | ||
| Curb Weight | 1,600 Pounds (727 Kilograms) | ||
| Conversion Time | 2 years | ||
| Conversion Cost | $15000 | ||
| Additional Features | Full independent suspension. Roll bar Just upgraded to COG belt drive to replace the chain drive. | ||
| Much quieter with the cog belt drive. Now if the sun will stay out I can enjoy the car for the summer. | |||

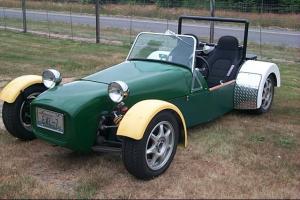

2013 Lotus 7 replica
“EVL-7”
(under construction)
Last Updated 07-22-2014
