LocationKokomo, Indiana United States map

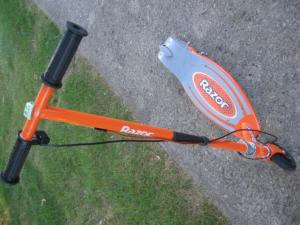

Vehicle2013 Razor e90
Advertised as a 9 mph scooter. Really?
MotorUnite Motor MY6812-12 B170411 PF 2012-08 Permanent Magnet DC
Warms up quite a bit. It's actually a 12 volt motor.
Drivetrain#25 Chain 9:47
Controller RGL RTT7105-24v JD2912
It's a relay....
electricscooterparts.com has a nice selection
Batteries1 Turnigy 6s 20c 5000mah, 25.20 Volt, Lithium-Polymer
Solid performer
System Voltage24 Volts
ChargerTurnigy Accucell-8 150W 7A Balancer/Charger
Custom charging harness
HeaterMotor approaches efficiency levels of combustion engine.
InstrumentationVoltmeter
Top Speed17 MPH (27 KPH)
I wouldn't want to go much faster on 5 inch solid wheels
Accelerationten seconds to top
Range3 Miles ( 4 Kilometers)
Doesn't have the option of taking extra packs to swap out. Plus fatigue might be a factor before too long
Seating CapacityDon't even think about it
TiresKick scooter
Conversion TimeZilch. Had to wait for the JB Weld to cure. Wired it up in 5 minutes
Conversion CostScooter: $100
Battery: $42
Relay: $6
Meter: $8
Additional FeaturesDisabling the scooter is as simple as unplugging the throttle button

The battery is held to the metal bar with ginormous heatshrink. I put some hot glue on the bar before I heated everything to make sure the battery wouldn't slide around

I did stick on a brake light and a go light but haven't wired them yet

The relay has an internal led across the coil. Wired one way the led lights when the relay is closed. Wired the other way it makes a visual flyback supressor!

The 8 pin connector I got from allelectronics doesn't seem to mind passing 5 amps. While the charger side has 7 small wires from the balance connector and 2 wires from the charge port, the inside of the scooter only has 7 wires from the connector. Black and red go to the main battery connection and the other five go to the balance connector. This works because the red and black discharge wires are common to the red and black balance wires.

Razor must have designed this scooter for 8 year olds because the handlebars were way too short for me. So I got a piece of steel pipe that fit and I used JB weld to keep it that way.
Not sure how long the motor will last

Not sure how long the relay will last
